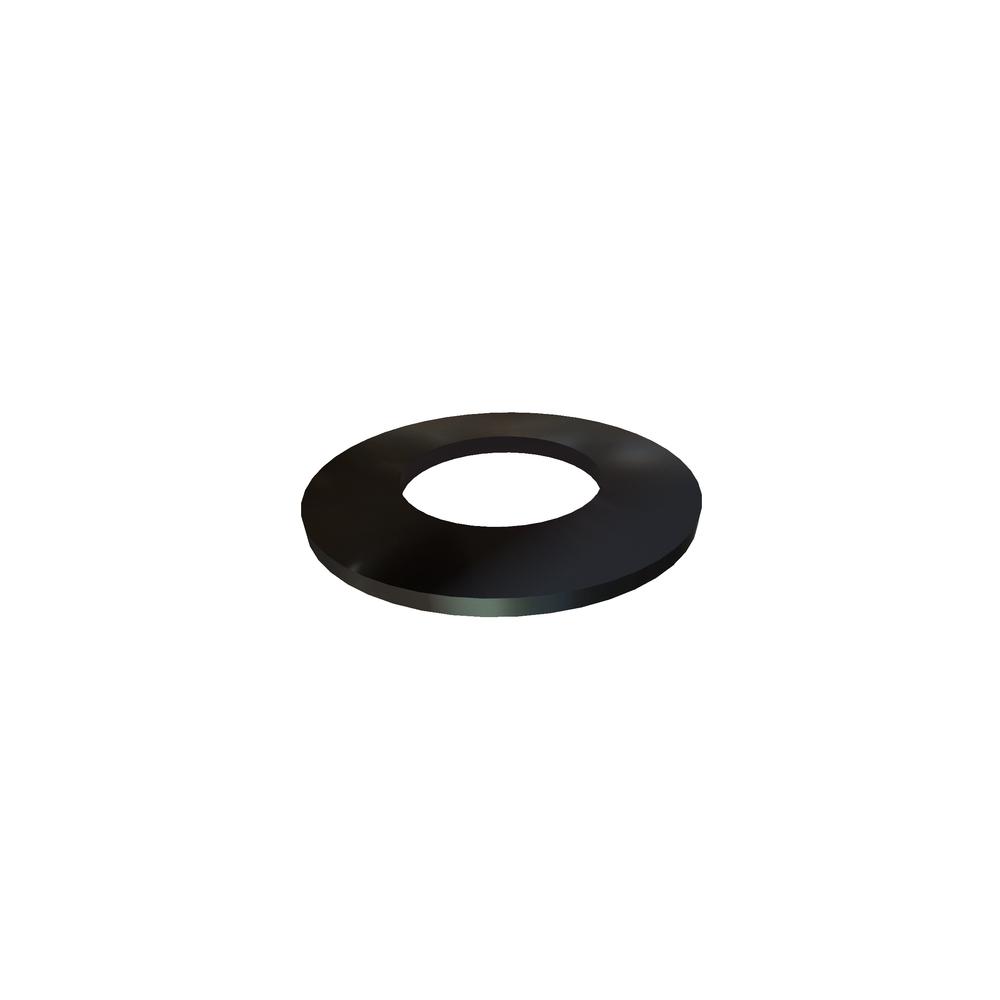

B0500-025S
1/4 BELLEVILLE WASHER SST .500 .255 .025
Alternate Codes: 056328-001, 9713K63
RoHS
Pricing per Unit
| 1-49 pcs | 50-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | Call For |
|---|---|---|---|---|---|
| $2.132 | $1.640 | $1.333 | $1.185 | $1.066 | Larger Quantities |
In Stock
| Material | Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Hole Size | 0.500in |
| Recommended For Screw Size | 1/4 |
| OD | 240 |
| ID | 0.255in |
| Load At Flat position (lbs.) | 160.0 lbs |
| Loaded at -H1(P1) (Min.) | 110.0 lbs |
| Loaded at -H1(P1) Max lbs. | 80.0 lbs |
| Loaded Height-H1 | 0.031in |
| Brand | ASSOCIATED SPRING |
| Type | Belleville Washer |
| Additional Industry Cross Reference | 9713K63 |
| Head Height (Max.) | 0.038in |
| Thickness (Max.) | 0.025in |
