B0500-038

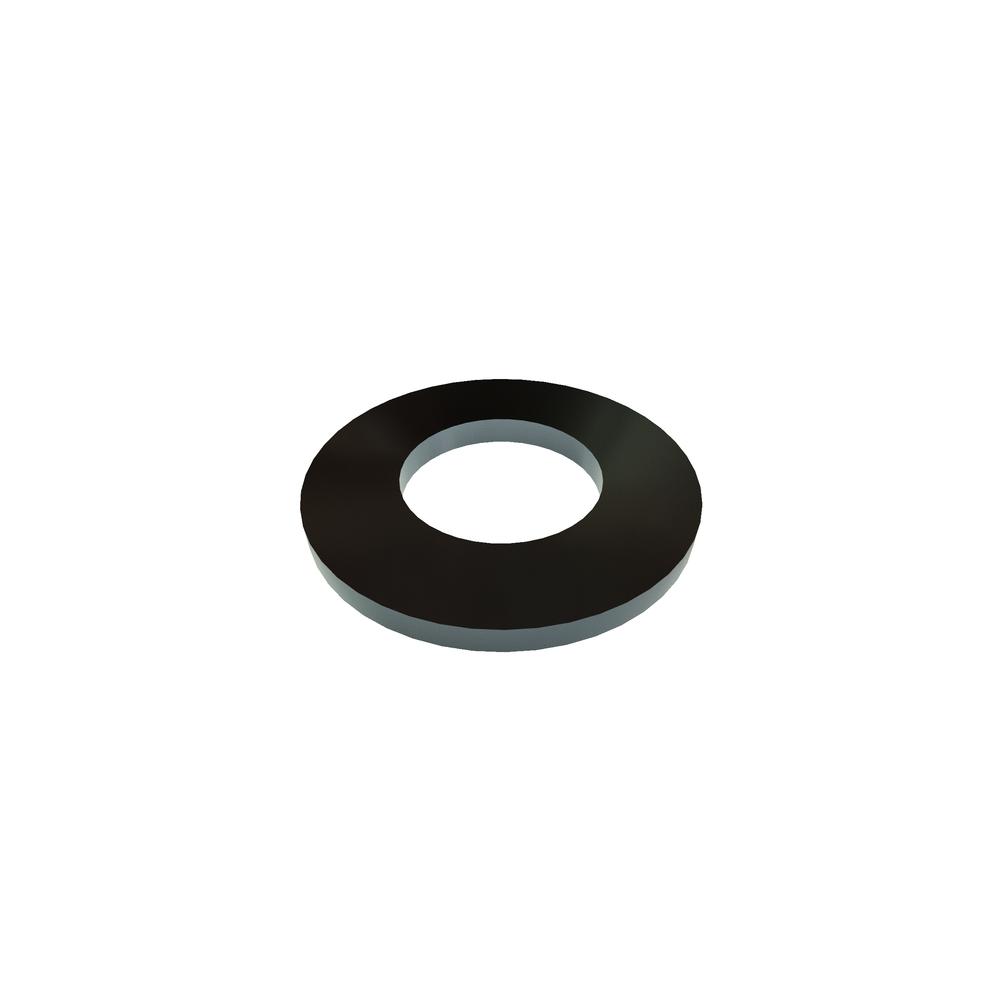

1/4 BELLEVILLE WASHER STL .500 .255 .038
Alternate Codes: 9712K64
RoHS
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Material | Steel |
| Finish | Plain |
| Units | Inch |
| Hole Size | 0.500in |
| Recommended For Screw Size | 1/4 |
| OD | 240 |
| ID | 0.255in |
| Load At Flat position (lbs.) | 400.0 lbs |
| Loaded at -H1(P1) (Min.) | 219.0 lbs |
| Loaded at -H1(P1) Max lbs. | 161.0 lbs |
| Loaded Height-H1 | 0.043in |
| Brand | ASSOCIATED SPRING |
| Type | Belleville Washer |
| Additional Industry Cross Reference | 9712K64 |
| Head Height (Max.) | 0.047in |
| Thickness (Max.) | 0.038in |
