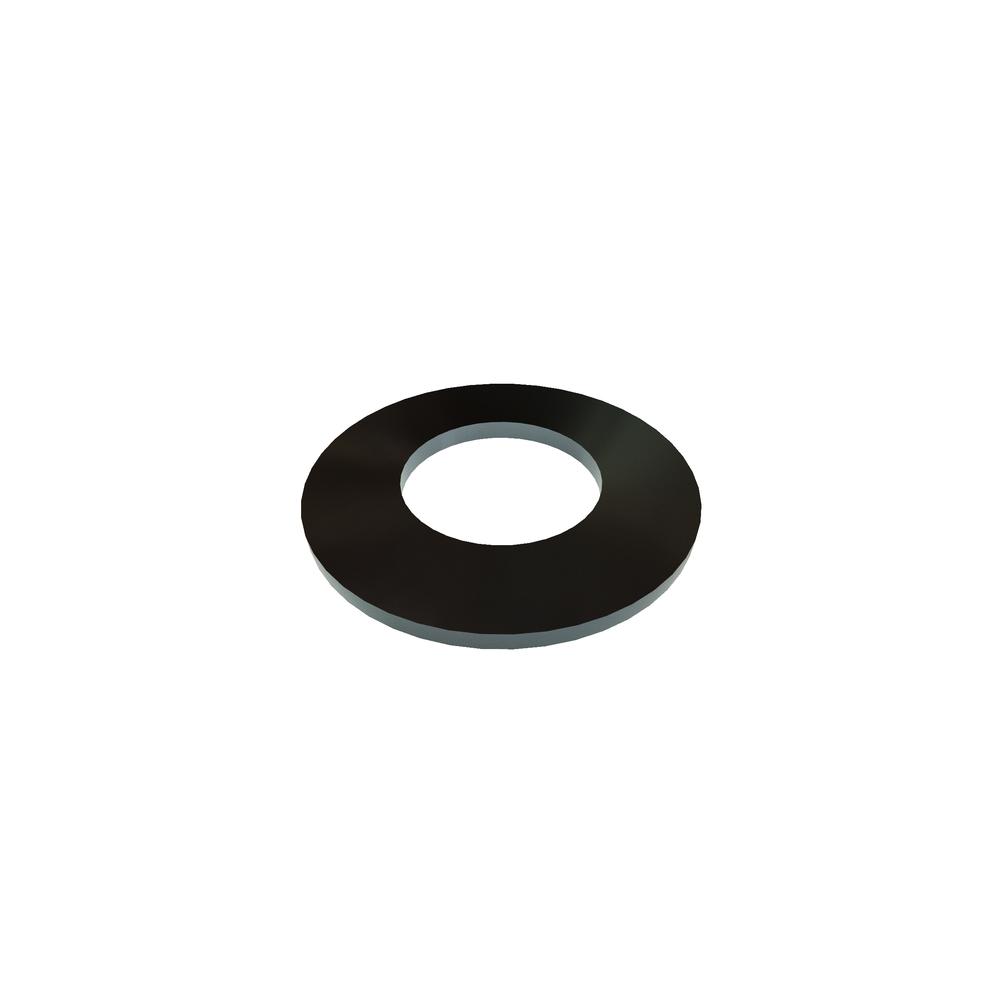

Image for reference purposes only. Actual product may vary.
B0750-040
3/8 BELLEVILLE WASHER STL .750 .380 .040
Alternate Codes: 9712K71
RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs |
|---|---|---|---|
| $0.930 | $0.592 | $0.543 | $0.501 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| ID | 0.380in |
| OD | 325 |
| Type | Belleville Washer |
| Finish | Plain |
| Material | Steel |
| Head Height (Max.) | 0.059in |
| Thickness (Max.) | 0.040in |
| Units | Inch |
| Hole Size | 0.750in |
| Recommended For Screw Size | 3/8 |
| Load At Flat position (lbs.) | 415.0 lbs |
| Loaded at -H1(P1) (Min.) | 271.0 lbs |
| Loaded at -H1(P1) Max lbs. | 199.0 lbs |
| Loaded Height-H1 | 0.049in |
| Brand | ASSOCIATED SPRING |
| Additional Industry Cross Reference | 9712K71 |
