B0937-030

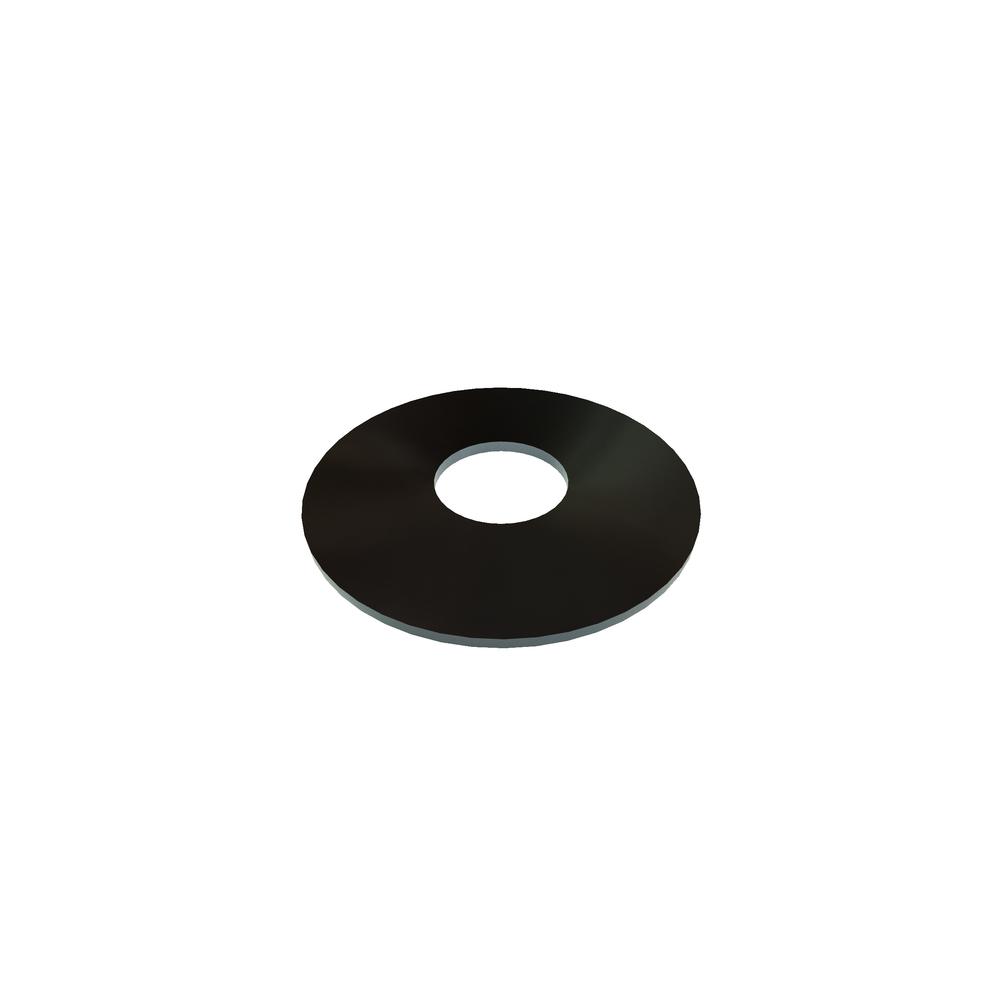

5/16 BELLEVILLE WASHER STL
Alternate Codes: 9712K118
.937 .317 .030
Pricing per Unit
| 1-49 pcs | 50-99 pcs |
|---|---|
| $4.402 | $3.386 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Material | Steel |
| Finish | Plain |
| Units | Inch |
| Hole Size | 0.625in |
| Recommended For Screw Size | 5/16 |
| OD | 366 |
| ID | 0.317in |
| Load At Flat position (lbs.) | 159.0 lbs |
| Loaded at -H1(P1) (Min.) | 127.0 lbs |
| Loaded at -H1(P1) Max lbs. | 93.5 lbs |
| Loaded Height-H1 | 0.045in |
| Brand | ASSOCIATED SPRING |
| Type | Belleville Washer |
| Additional Industry Cross Reference | 9712K118 |
| Head Height (Max.) | 0.060in |
| Thickness (Max.) | 0.030in |
