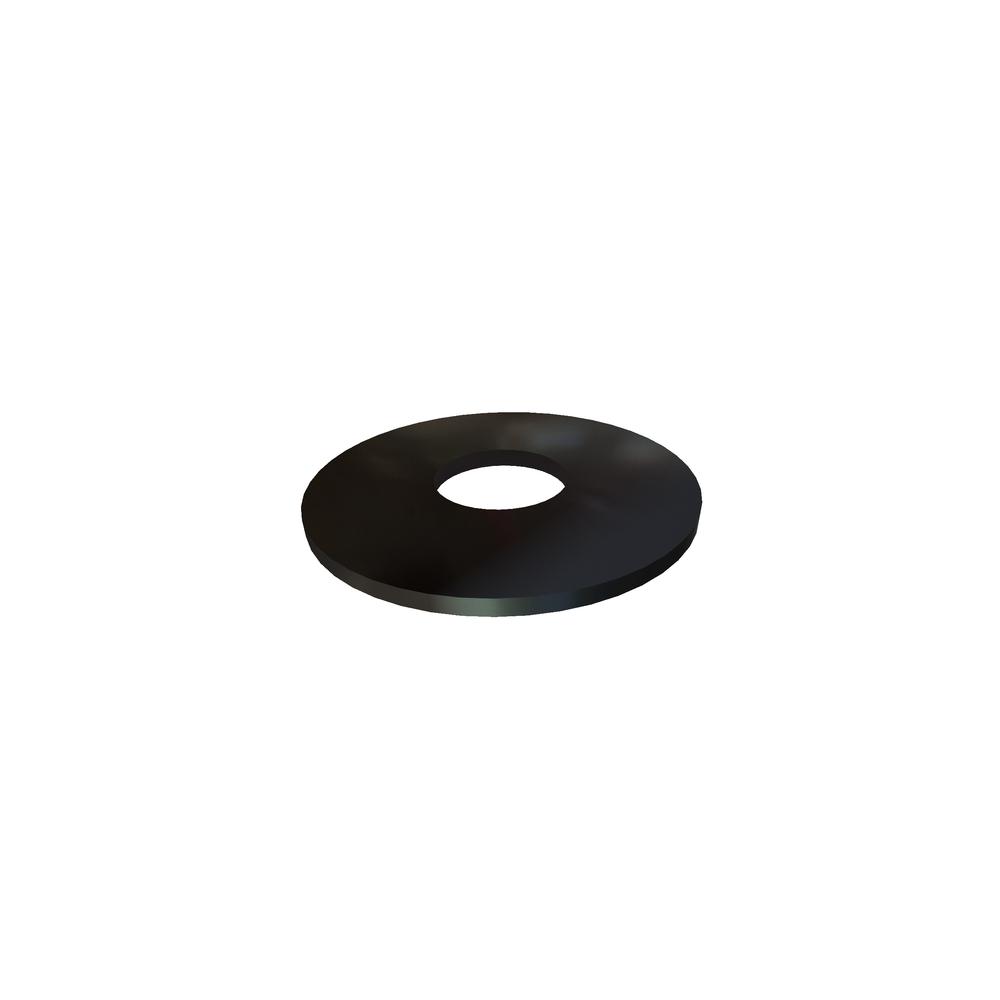

Image for reference purposes only. Actual product may vary.
B0937-045S
5/16 BELLEVILLE WASHER SST
Alternate Codes: 9713K73
.937 .317 .045
Pricing per Unit
| 1-49 pcs | 50-99 pcs | 100-249 pcs |
|---|---|---|
| $3.890 | $2.992 | $2.431 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| ID | 0.317in |
| OD | 366 |
| Type | Belleville Washer |
| Finish | Plain |
| Material | Stainless Steel |
| Head Height (Max.) | 0.067in |
| Thickness (Max.) | 0.045in |
| Units | Inch |
| Hole Size | 0.625in |
| Recommended For Screw Size | 5/16 |
| Load At Flat position (lbs.) | 395.0 lbs |
| Loaded at -H1(P1) (Min.) | 251.0 lbs |
| Loaded at -H1(P1) Max lbs. | 185.0 lbs |
| Loaded Height-H1 | 0.056in |
| Brand | ASSOCIATED SPRING |
| Additional Industry Cross Reference | 9713K73 |
