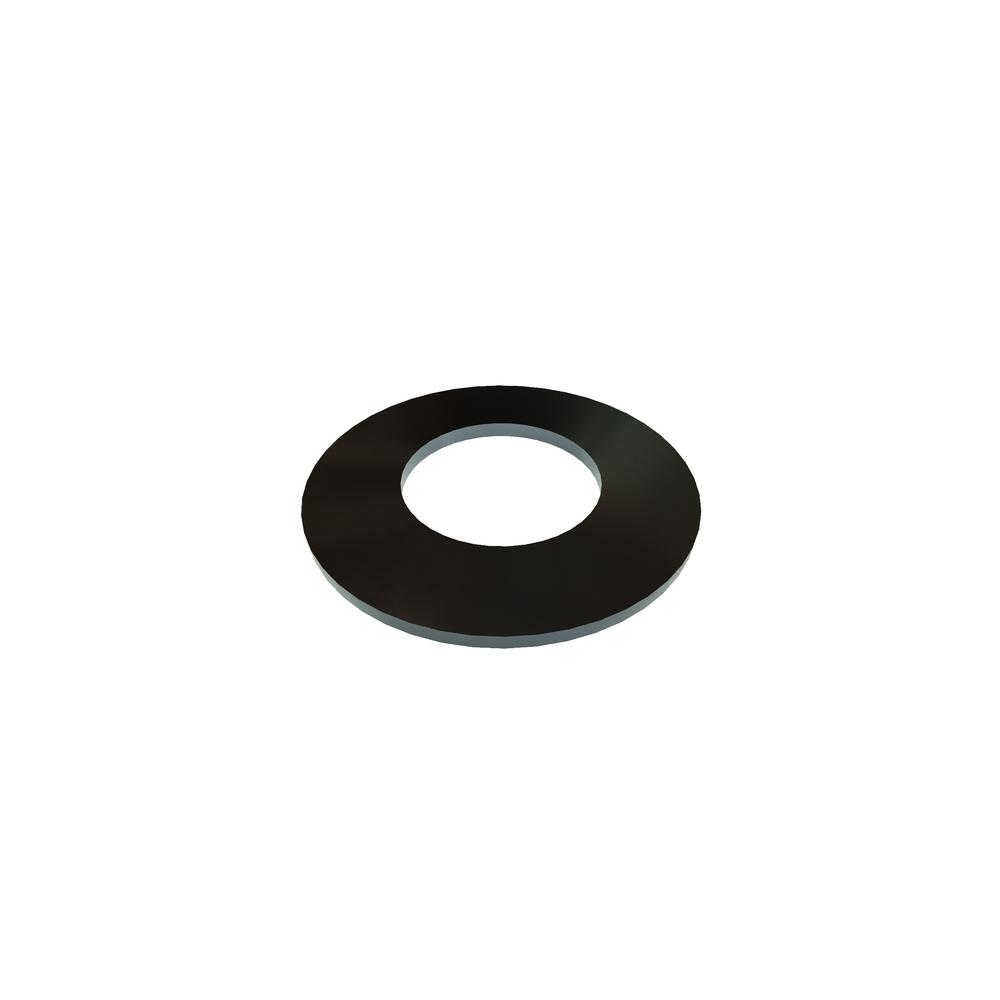

1/2 BELLEVILLE WASHER STL 1.0 .505 .043
B1000-043
| Item Id | B1000-043 |
| Description | 1/2 BELLEVILLE WASHER STL 1.0 .505 .043 |
| Alternate Codes | 9712K75 |
| Extended Description | RoHS |
| Packaging | EA |
| Additional Industry Cross Reference | 9712K75 |
| Brand | ASSOCIATED SPRING |
| Finish | Plain |
| Head Height (Max.) | 0.071in |
| Hole Size | 1.000in |
| ID | 0.505in |
| Load At Flat position (lbs.) | 431.0 lbs |
| Loaded at -H1(P1) (Min.) | 288.0 lbs |
| Loaded at -H1(P1) Max lbs. | 213.0 lbs |
| Loaded Height-H1 | 0.057in |
| Material | Steel |
| OD | 378 |
| Recommended For Screw Size | 1/2 |
| Thickness (Max.) | 0.043in |
| Type | Belleville Washer |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
