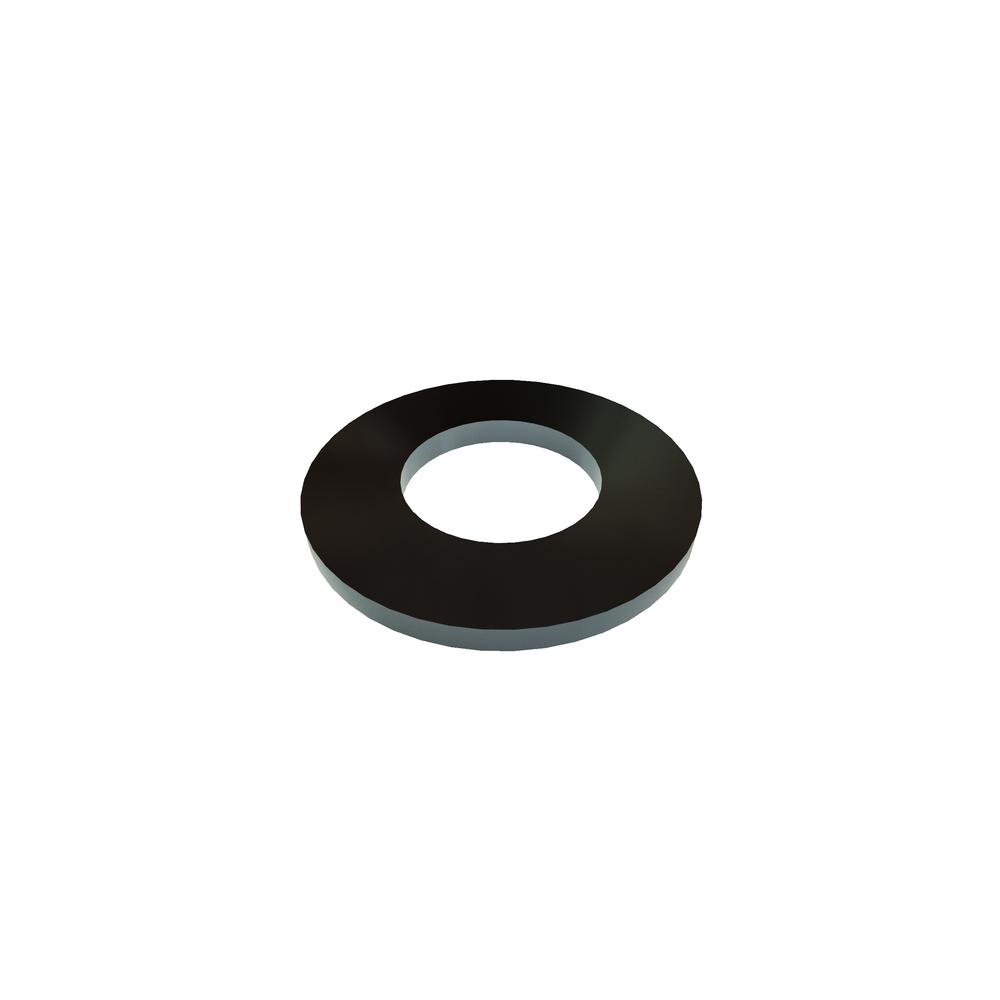

Image for reference purposes only. Actual product may vary.
B1000-073
1/2 BELLEVILLE WASHER STL 1.0 .505 .073
Alternate Codes: 9712K77
RoHS
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| ID | 0.505in |
| OD | 378 |
| Type | Belleville Washer |
| Finish | Plain |
| Material | Steel |
| Head Height (Max.) | 0.091in |
| Thickness (Max.) | 0.073in |
| Units | Inch |
| Hole Size | 1.000in |
| Recommended For Screw Size | 1/2 |
| Load At Flat position (lbs.) | 1335.0 lbs |
| Loaded at -H1(P1) (Min.) | 777.0 lbs |
| Loaded at -H1(P1) Max lbs. | 573.0 lbs |
| Loaded Height-H1 | 0.082in |
| Brand | ASSOCIATED SPRING |
| Additional Industry Cross Reference | 9712K77 |
