B1250-062

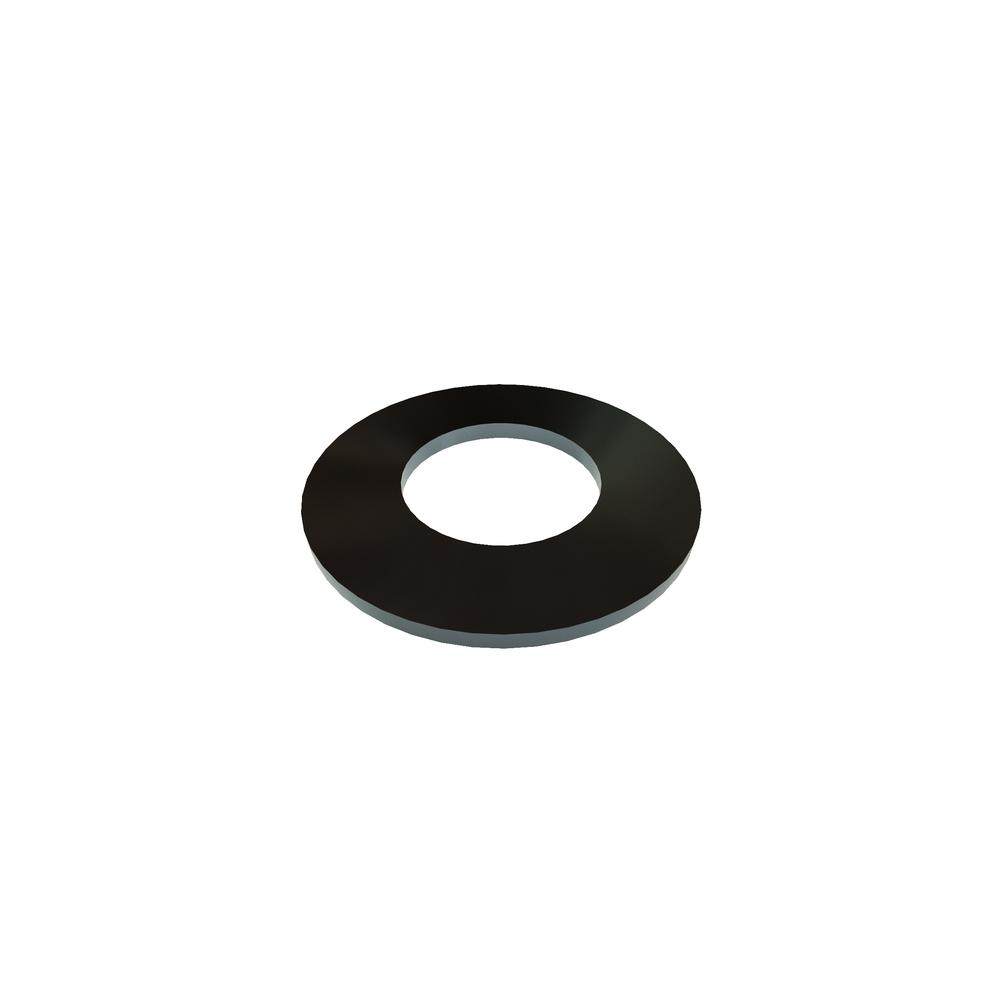

5/8 BELLEVILLE WASHER STL 1.25 .630 .062
Alternate Codes: 9712K83
RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs |
|---|---|---|---|
| $1.331 | $0.847 | $0.777 | $0.717 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Material | Steel |
| Finish | Plain |
| Units | Inch |
| Hole Size | 1.250in |
| Recommended For Screw Size | 5/8 |
| OD | 413 |
| ID | 0.630in |
| Load At Flat position (lbs.) | 870.0 lbs |
| Loaded at -H1(P1) (Min.) | 547.0 lbs |
| Loaded at -H1(P1) Max lbs. | 403.0 lbs |
| Loaded Height-H1 | 0.077in |
| Brand | ASSOCIATED SPRING |
| Type | Belleville Washer |
| Additional Industry Cross Reference | 9712K83 |
| Head Height (Max.) | 0.092in |
| Thickness (Max.) | 0.062in |
