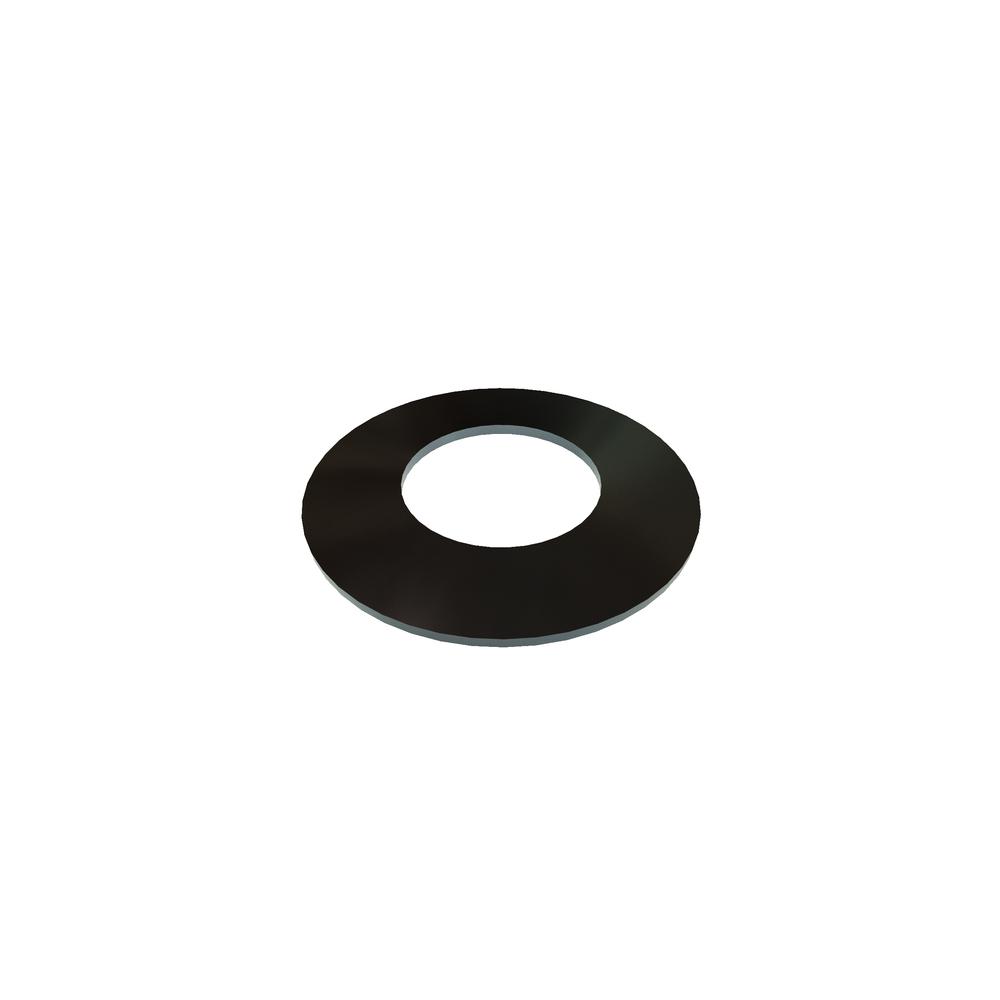

Image for reference purposes only. Actual product may vary.
B1500-045
3/4 BELLEVILLE WASHER STL 1.5 .755 .045
Alternate Codes: 9712K86
RoHS
Pricing per Unit
| 1-24 pcs | 25-49 pcs | 50-99 pcs | 100-249 pcs | 250-499 pcs | Call For |
|---|---|---|---|---|---|
| $4.901 | $4.092 | $3.647 | $3.300 | $3.168 | Larger Quantities |
In Stock
Maximum stock already in cart
| ID | 0.755in |
| OD | 436 |
| Type | Belleville Washer |
| Finish | Plain |
| Material | Steel |
| Head Height (Max.) | 0.093in |
| Thickness (Max.) | 0.045in |
| Units | Inch |
| Hole Size | 1.500in |
| Recommended For Screw Size | 3/4 |
| Load At Flat position (lbs.) | 400.0 lbs |
| Loaded at -H1(P1) (Min.) | 327.0 lbs |
| Loaded at -H1(P1) Max lbs. | 241.0 lbs |
| Loaded Height-H1 | 0.069in |
| Brand | ASSOCIATED SPRING |
| Additional Industry Cross Reference | 9712K86 |
