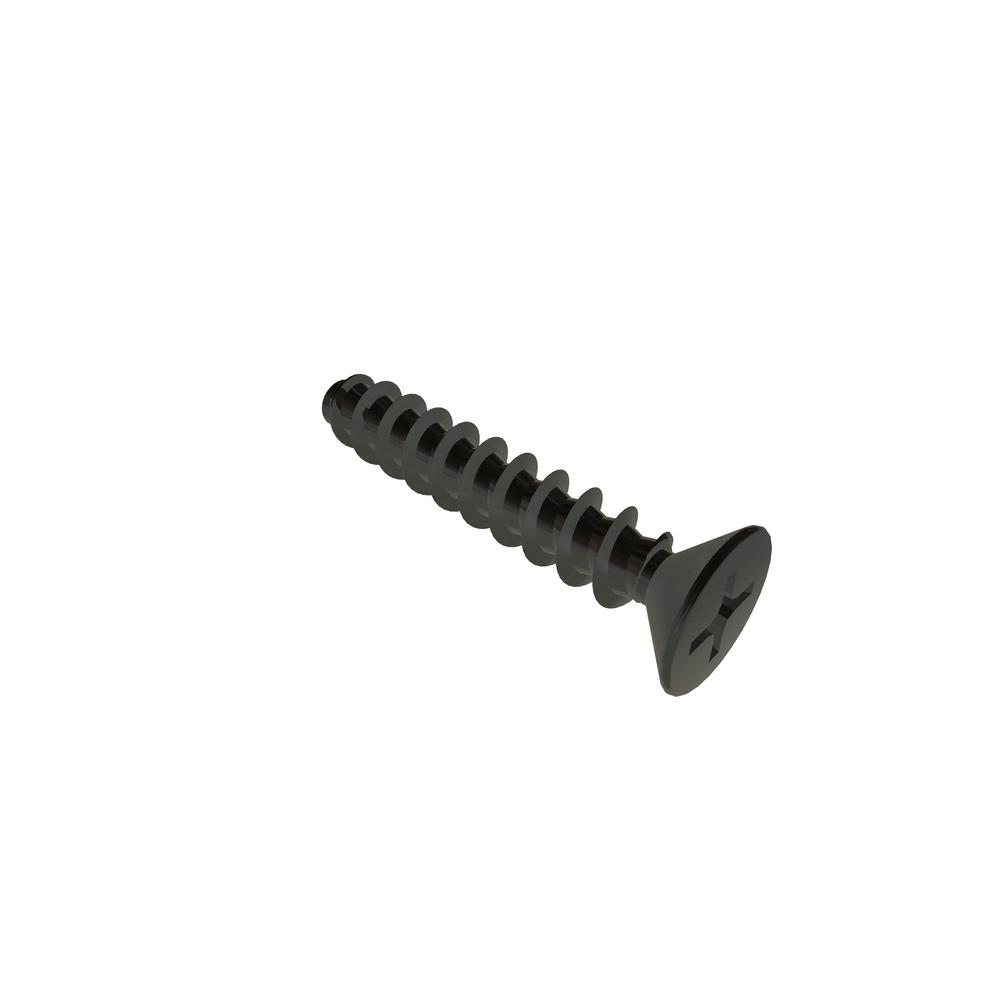

Image for reference purposes only. Actual product may vary.
BN13576-KA22X12/R
M2.2 X 12 PT-FLAT HD SCR PHIL STL ZN
Alternate Codes: N/A
M2.2 X 12 Philllips Flat PT Screw Form H WN1413 Steel Zinc Plated RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.882 | $0.561 | $0.515 | $0.475 | $0.401 | Larger Quantities |
In Stock
Maximum stock already in cart
| Thread Size | M2.2 |
| Finish | Zinc Clear |
| Brand | BOSSARD |
| Drive Type | Phillips |
| Head Type | Flat |
| Nominal Thread Size | M2.2 |
| Recess Diameter | 2.35 mm |
| Penetration Depth (Max.) | 1.25 mm |
| Penetration Depth (Min.) | 0.95 mm |
| Material | Steel |
| Units | Metric |
| Thread Type | PT Thread |
| Drive Size | 1 |
| Head Diameter (Max.) | 3.80 mm |
| Head Height (Min.) | 0.35 mm |
