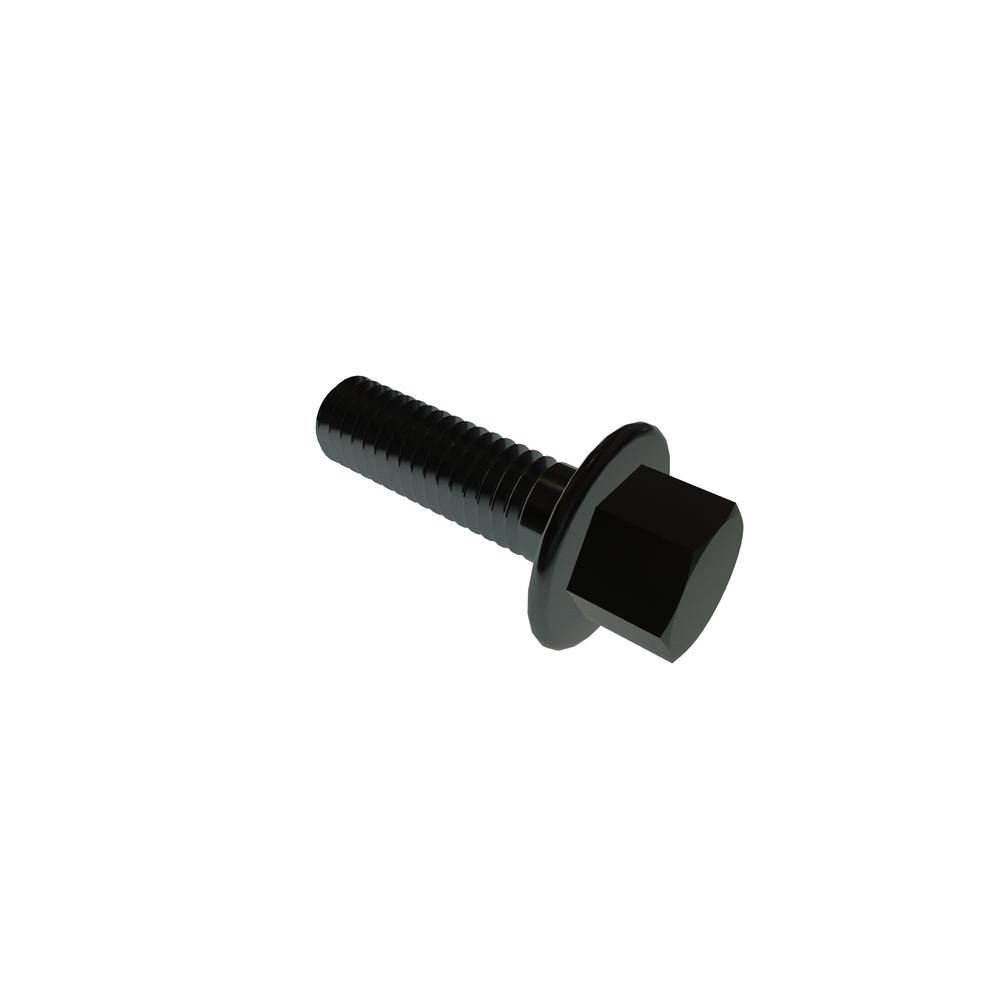

M6-1.0 X 20 SERRATED HX FLANGE BOLT
BN73-M6X20
| Item Id | BN73-M6X20 |
| Description | M6-1.0 X 20 SERRATED HX FLANGE BOLT |
| Extended Description | Cl.90 BLK RoHS |
| Packaging | EA |
| Brand | BOSSARD |
| Finish | Black Oxide |
| Flange Diameter (Max.) | 13.60 mm |
| Grade | Other |
| Head Height (Max.) | 6.90 mm |
| Head Type | Hex Flange Bolt |
| Material | Steel |
| Meets (Standard) | ASME B18.2.3.4M |
| Nominal Diameter | 6.00 mm |
| Thread Length | 17.0 mm |
| Thread Size | M6x1 |
| Thread Type | Metric Coarse |
| Total Shank Diameter (Max.) | 6.00 mm |
| Total Shank Diameter (Min.) | 5.82 mm |
| Type | Serrated Flange Bolt |
| Units | Metric |
| Width Across Flat (Max.) | 8.00 mm |
| Width Across Flat (Min.) | 7.64 mm |
| Wrenching Height (Min.) | 2.90 mm |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
