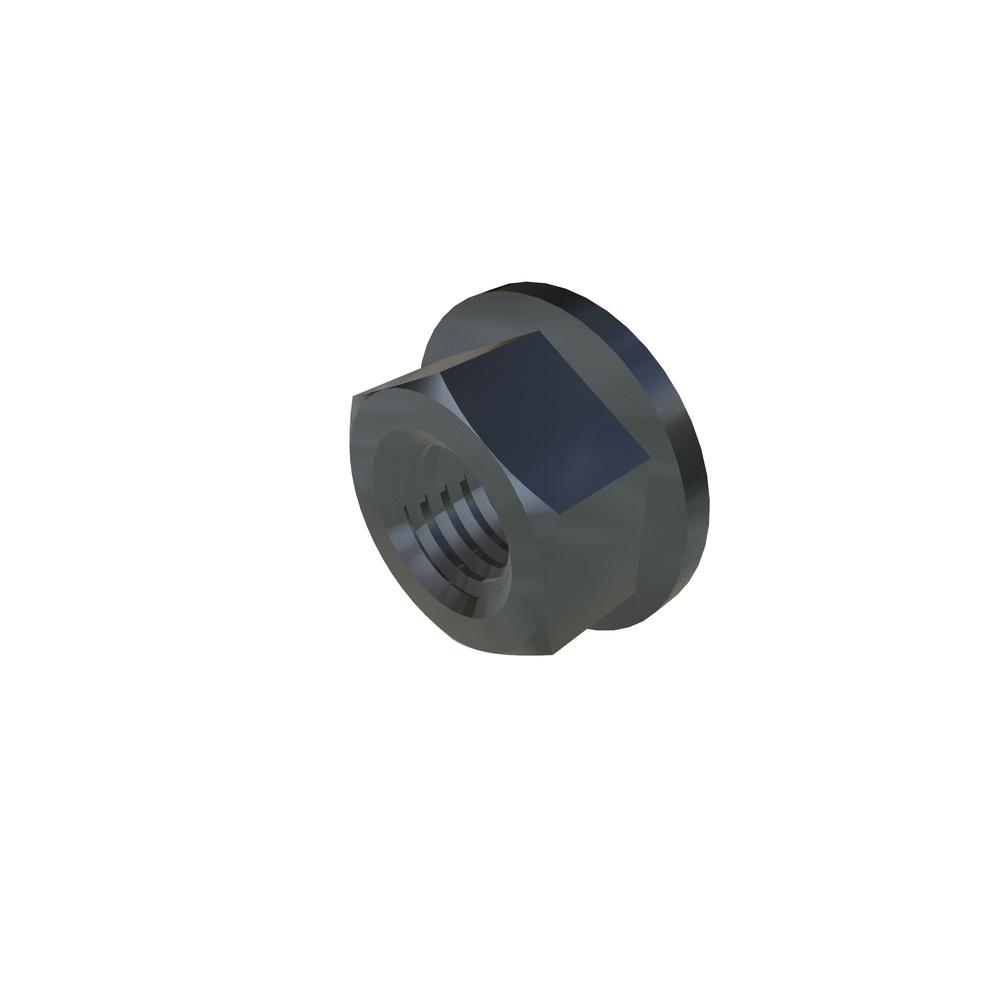

Image for reference purposes only. Actual product may vary.
BN860-M5
M5-.8 HX FLANGE NUT STL ZN CR3
Alternate Codes: N/A
M5-.8 Hex Flange Nut Steel Zinc Plated RoHS3
Pricing per Unit
| 1-499 pcs | 500-999 pcs | 1000-2499 pcs |
|---|---|---|
| $0.117 | $0.072 | $0.052 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Thread Size | M5x0.8 |
| Type | Hex Flange Nut |
| Material | Steel |
| Finish | Zinc Cr3 |
| Wrenching Height (Min.) | 2.50 mm |
| Width Across Flat (Max.) | 8.00 mm |
| Width Across Flat (Min.) | 7.78 mm |
| Nominal Diameter | 5.00 mm |
| Flange Diameter (Min.) | 9.80 mm |
| Flange Diameter (Max.) | 11.80 mm |
| Flange Thickness (Min.) | 1.00 mm |
| Units | Metric |
| Thread Type | Metric Coarse |
| Brand | BOSSARD |
| Meets (Standard) | ISO 4161 |
| Head Thickness (Max.) | 5.00 mm |
| Head Thickness (Min.) | 4.70 mm |
