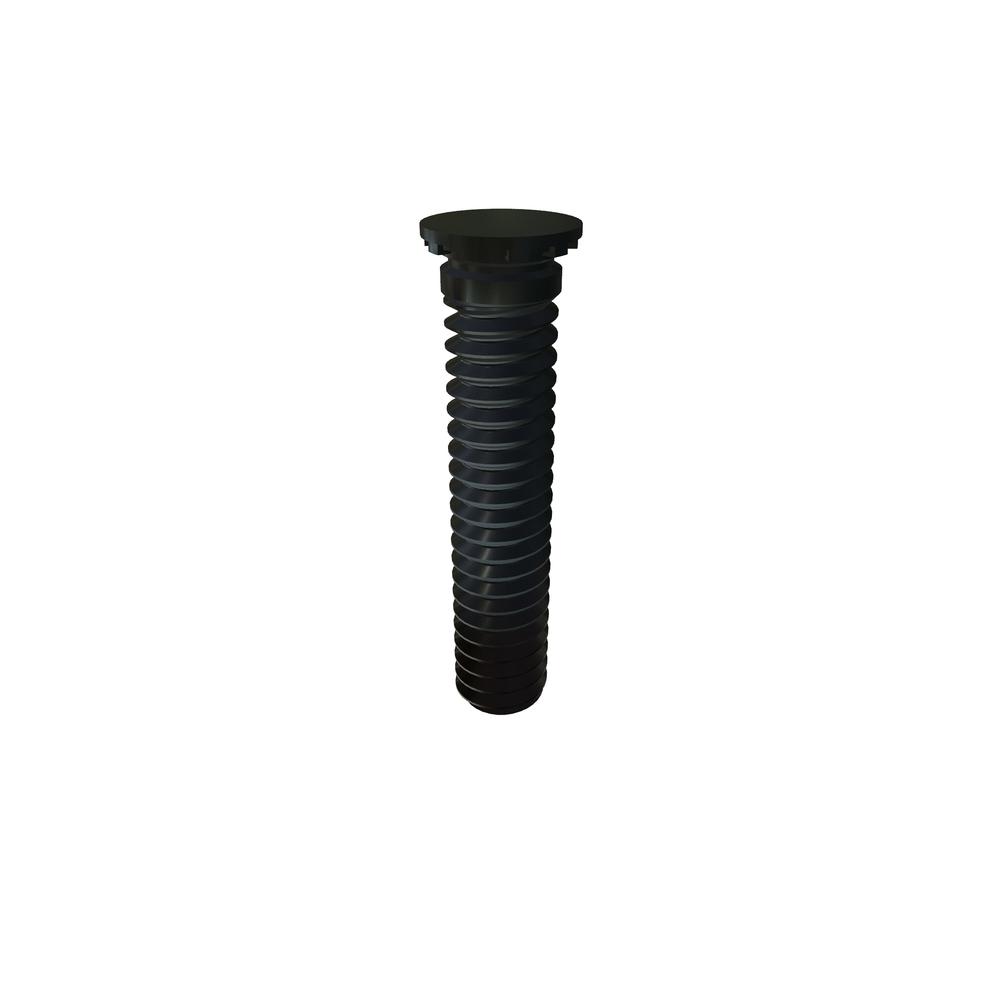

SELF CLINCH STUD STL ZN CR3 RoHS
CH420-20R
| Item Id | CH420-20R |
| Description | SELF CLINCH STUD STL ZN CR3 RoHS |
| Alternate Codes | /CH420-20, FH 0420-20 EQUAL, FH 0420-20R, M63540/1-49 |
| Extended Description | SELF CLINCH STUD STEEL ZINC RoHS3 |
| Packaging | EA |
| Brand | CAPTIVE FASTENERS |
| Finish | Zinc Cr3 |
| FORMAT | x |
| Hole Center From Sheet Edge for Bottom Panel (Min.) | 0.312in |
| Hole Diameter | 0.249in |
| Material | Heat Treated Carbon Steel |
| Maximum Rec. Nut Tight. Torque in lbs. | 55 lbs |
| RoHS | Compliant |
| Sheet Thickness (Min.) | 0.062in |
| Thread Size | 1/4-20 |
| Thread Type | External 2A, ANSI B1.1 (6g ANSI/ASME B1.13M) |
| Type | Self Clinch Stud |
| Units | Inch |
| Used For | CH- Materials with HRB-80 or less. |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
