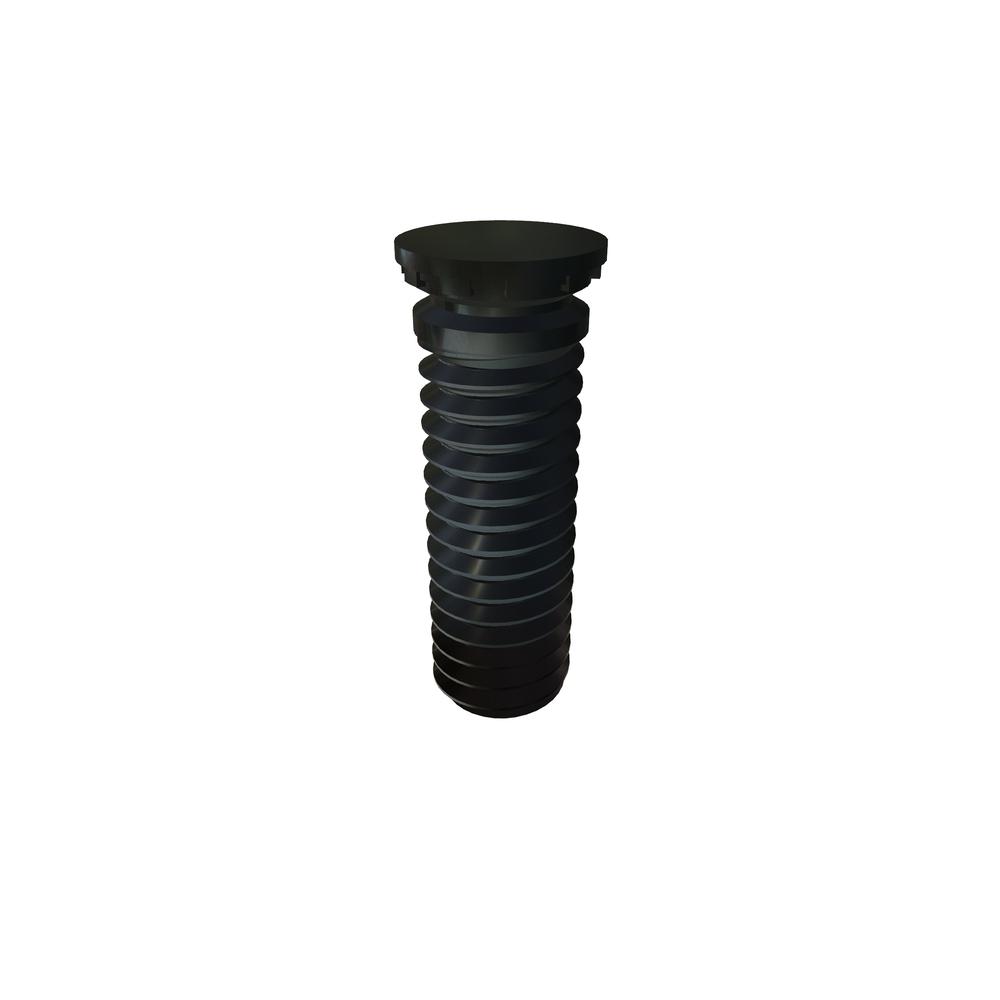

CH518-16R
SELF CLINCH STUD STL ZN CR3 RoHS
Alternate Codes: /CH518-16, FH 0518-16 EQUAL, FH 0518-16R, M63540/1-54
SELF CLINCH STUD STEEL ZINC RoHS3
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | 5/16-18 |
| Material | Heat Treated Carbon Steel |
| Finish | Zinc Cr3 |
| Units | Inch |
| Thread Type | External 2A, ANSI B1.1 (6g ANSI/ASME B1.13M) |
| FORMAT | x |
| Sheet Thickness (Min.) | 0.093in |
| Hole Center From Sheet Edge for Bottom Panel (Min.) | 0.375in |
| Hole Diameter | 0.311in |
| Used For | CH- Materials with HRB-80 or less. |
| Brand | CAPTIVE FASTENERS |
| Type | Self Clinch Stud |
| RoHS | Compliant |
| Maximum Rec. Nut Tight. Torque in lbs. | 115 lbs |
