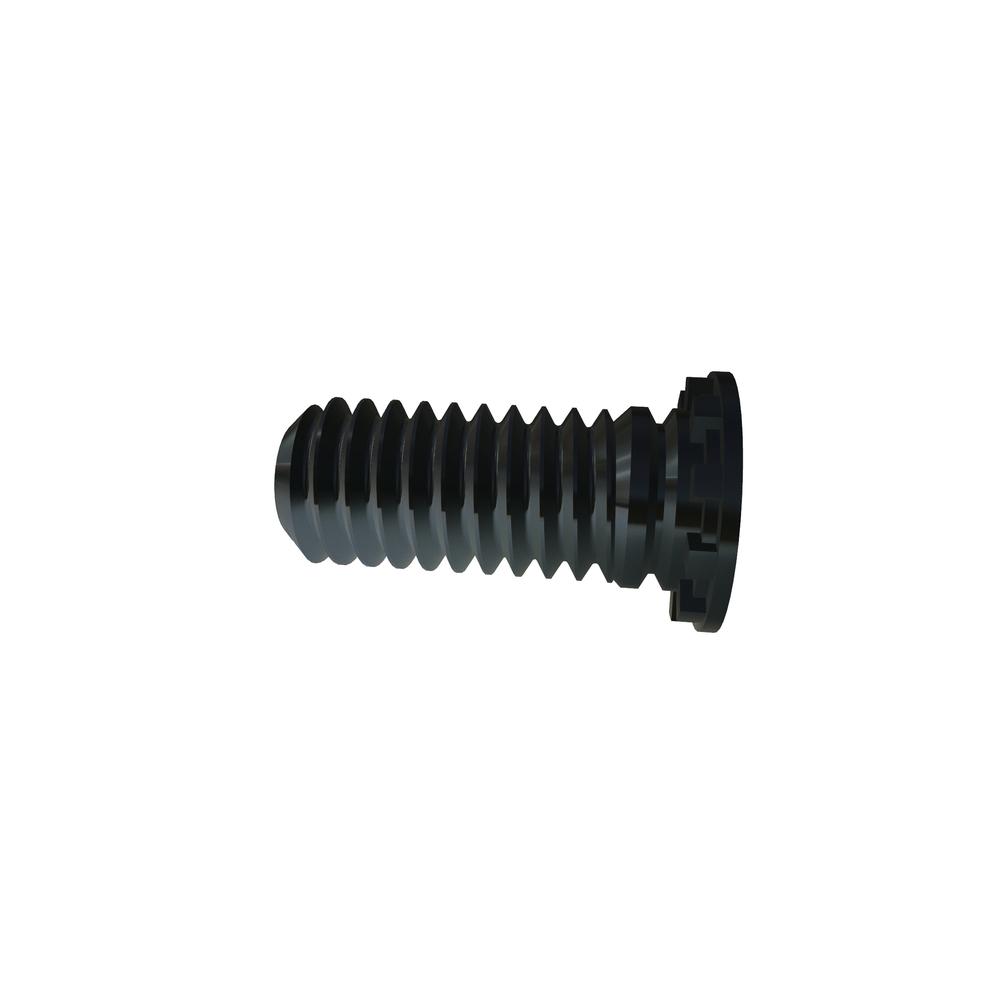

Image for reference purposes only. Actual product may vary.
CHM4-10R
SELF CLINCH STUD STL ZN RoHS
Alternate Codes: /CHM4-10, FH M4-10 EQUAL, FH M4-10R
SELF CLINCH STUD STEEL ZINC RoHS3
Pricing per Unit
| 1-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs |
|---|---|---|---|---|
| $0.093 | $0.062 | $0.046 | $0.037 | $0.035 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Thread Size | M4x0.7 |
| Finish | Zinc Cr3 |
| Maximum Rec. Nut Tight. Torque in lbs. | 4.6 lbs |
| Type | Self Clinch Stud |
| Brand | CAPTIVE FASTENERS |
| Hole Diameter | 4.00 mm |
| Sheet Thickness (Min.) | 1.50 mm |
| Material | Heat Treated Carbon Steel |
| Units | Metric |
| Thread Type | External 2A, ANSI B1.1 (6g ANSI/ASME B1.13M) |
| FORMAT | x |
| Hole Center From Sheet Edge for Bottom Panel (Min.) | 7.20 mm |
| Used For | CH- Materials with HRB-80 or less. |
| RoHS | Compliant |
