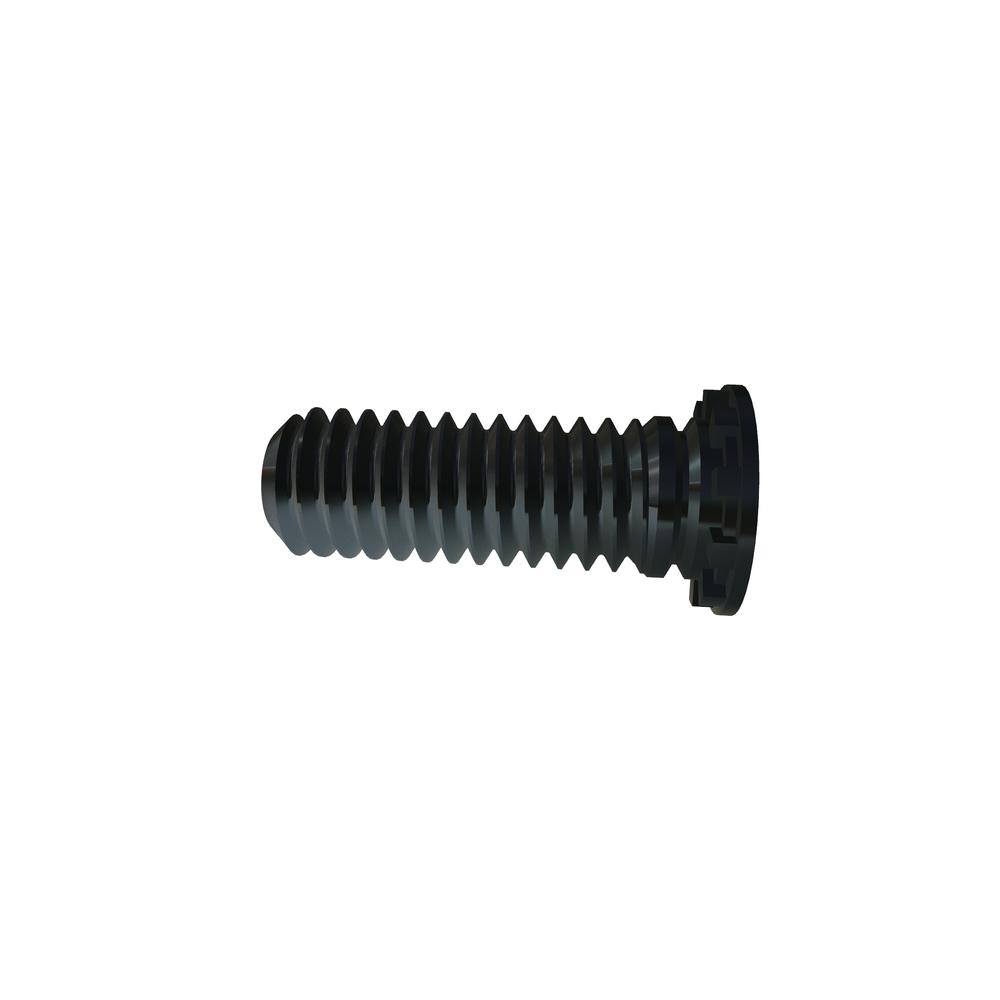

SELF CLINCH STUD STL ZN CR3 RoHS
CHM4-12R
| Item Id | CHM4-12R |
| Description | SELF CLINCH STUD STL ZN CR3 RoHS |
| Alternate Codes | /CHM4-12, FH M4-12 EQUAL, FH M4-12R |
| Extended Description | SELF CLINCH STUD STEEL ZINC RoHS3 |
| Packaging | EA |
| Brand | CAPTIVE FASTENERS |
| Finish | Zinc Cr3 |
| FORMAT | x |
| Hole Center From Sheet Edge for Bottom Panel (Min.) | 7.20 mm |
| Hole Diameter | 4.00 mm |
| Material | Heat Treated Carbon Steel |
| Maximum Rec. Nut Tight. Torque in lbs. | 4.6 lbs |
| RoHS | Compliant |
| Sheet Thickness (Min.) | 1.50 mm |
| Thread Size | M4x0.7 |
| Thread Type | External 2A, ANSI B1.1 (6g ANSI/ASME B1.13M) |
| Type | Self Clinch Stud |
| Units | Metric |
| Used For | CH- Materials with HRB-80 or less. |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
