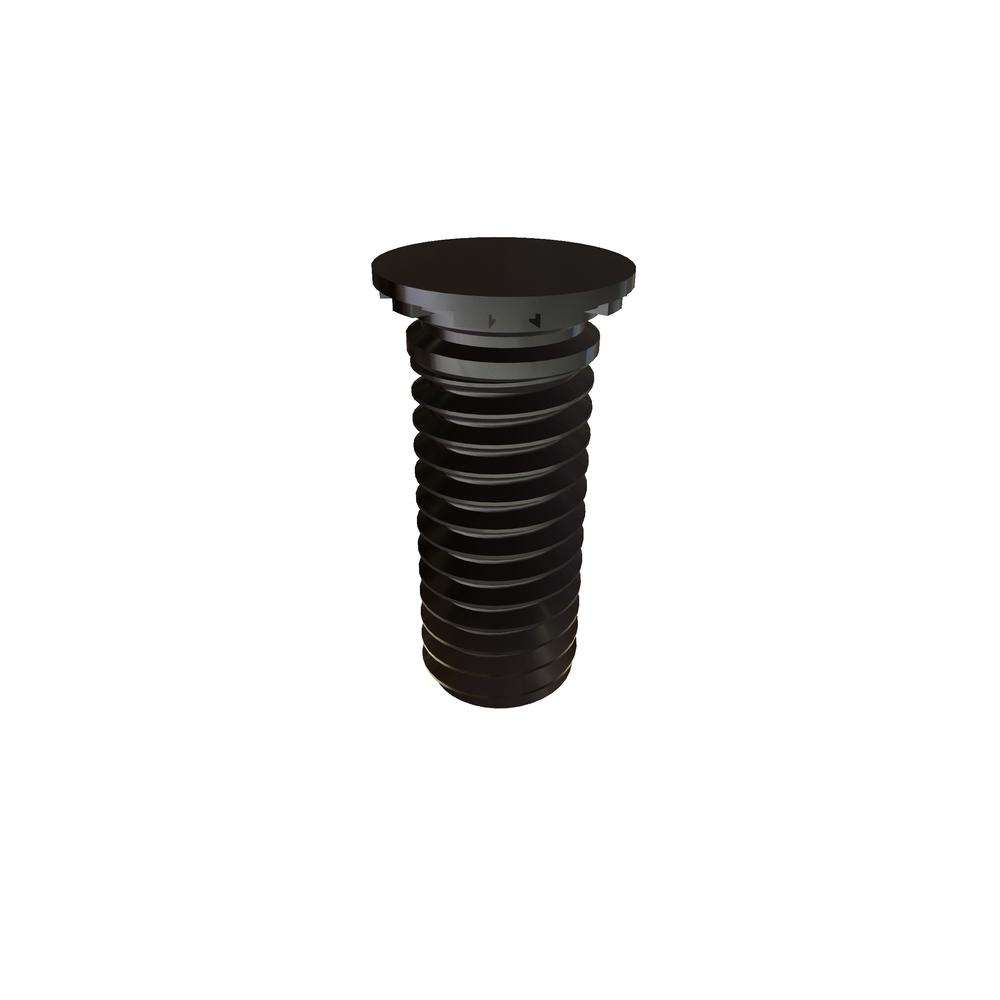

CHS1032-8
SELF CLINCH STUD SST RoHS
Alternate Codes: FHS 032-8, FHS 032-8 EQUAL, M63540/1-37C
SELF Clinching STUD Stainless Steel RoHS3
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.197 | $0.131 | $0.109 | $0.099 | $0.090 | Larger Quantities |
In Stock
| Thread Size | 10-32 |
| Material | 300 Series Stainless Steel |
| Finish | Passivated Astm A967 |
| Units | Inch |
| Thread Type | External 2A, ANSI B1.1 (6g ANSI/ASME B1.13M) |
| FORMAT | x |
| Sheet Thickness (Min.) | 0.060in |
| Hole Center From Sheet Edge for Bottom Panel (Min.) | 0.281in |
| Hole Diameter | 0.189in |
| Used For | CHS- Materials with HRB-70 or less. |
| Brand | CAPTIVE FASTENERS |
| Type | Self Clinch Stud |
| Maximum Rec. Nut Tight. Torque in lbs. | 30 lbs |
