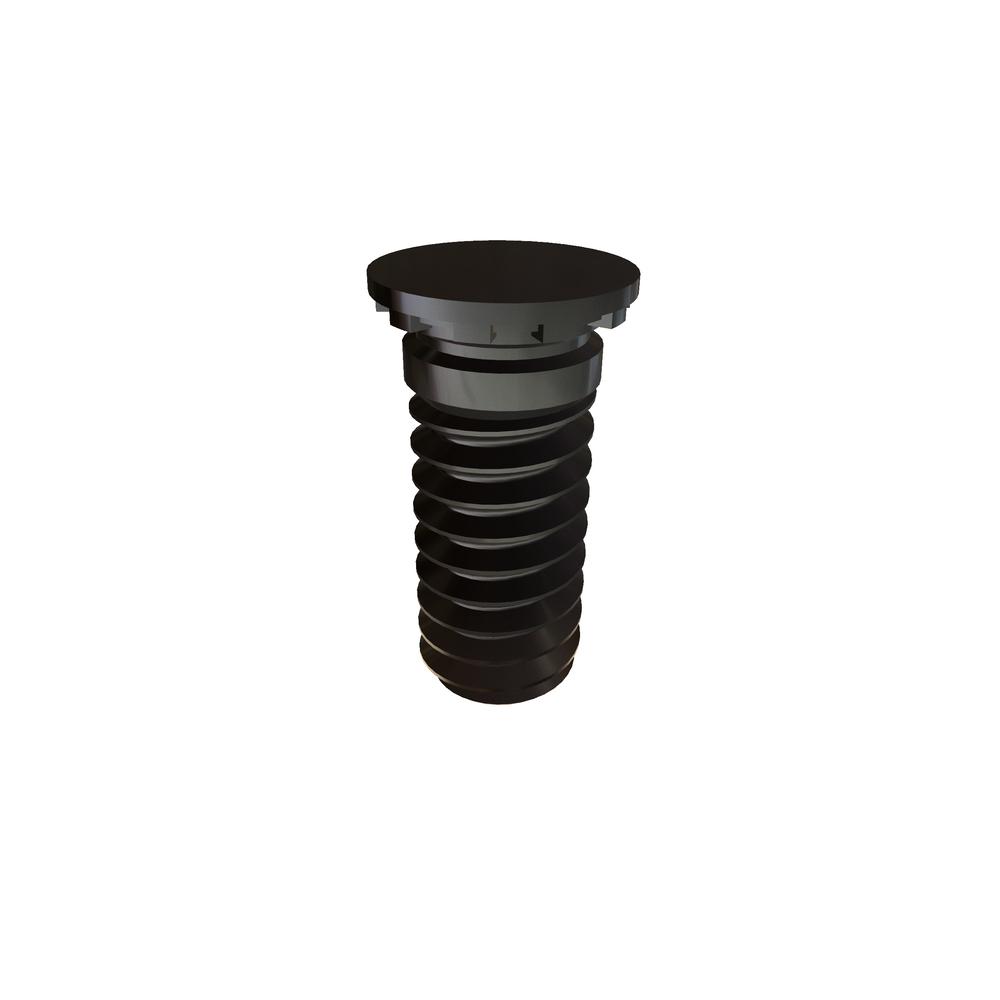

CHS420-10
SELF CLINCH STUD SST RoHS
Alternate Codes: FHS 0420-10, FHS 0420-10 EQUAL, M63540/1-45C
SELF Clinching STUD Stainless Steel RoHS3
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.278 | $0.185 | $0.174 | $0.139 | $0.126 | Larger Quantities |
In Stock
| Thread Size | 1/4-20 |
| Material | 300 Series Stainless Steel |
| Finish | Passivated Astm A967 |
| Units | Inch |
| Thread Type | External 2A, ANSI B1.1 (6g ANSI/ASME B1.13M) |
| FORMAT | x |
| Sheet Thickness (Min.) | 0.062in |
| Hole Center From Sheet Edge for Bottom Panel (Min.) | 0.312in |
| Hole Diameter | 0.249in |
| Used For | CHS- Materials with HRB-70 or less. |
| Brand | CAPTIVE FASTENERS |
| Type | Self Clinch Stud |
| RoHS | Compliant |
| Maximum Rec. Nut Tight. Torque in lbs. | 55 lbs |
