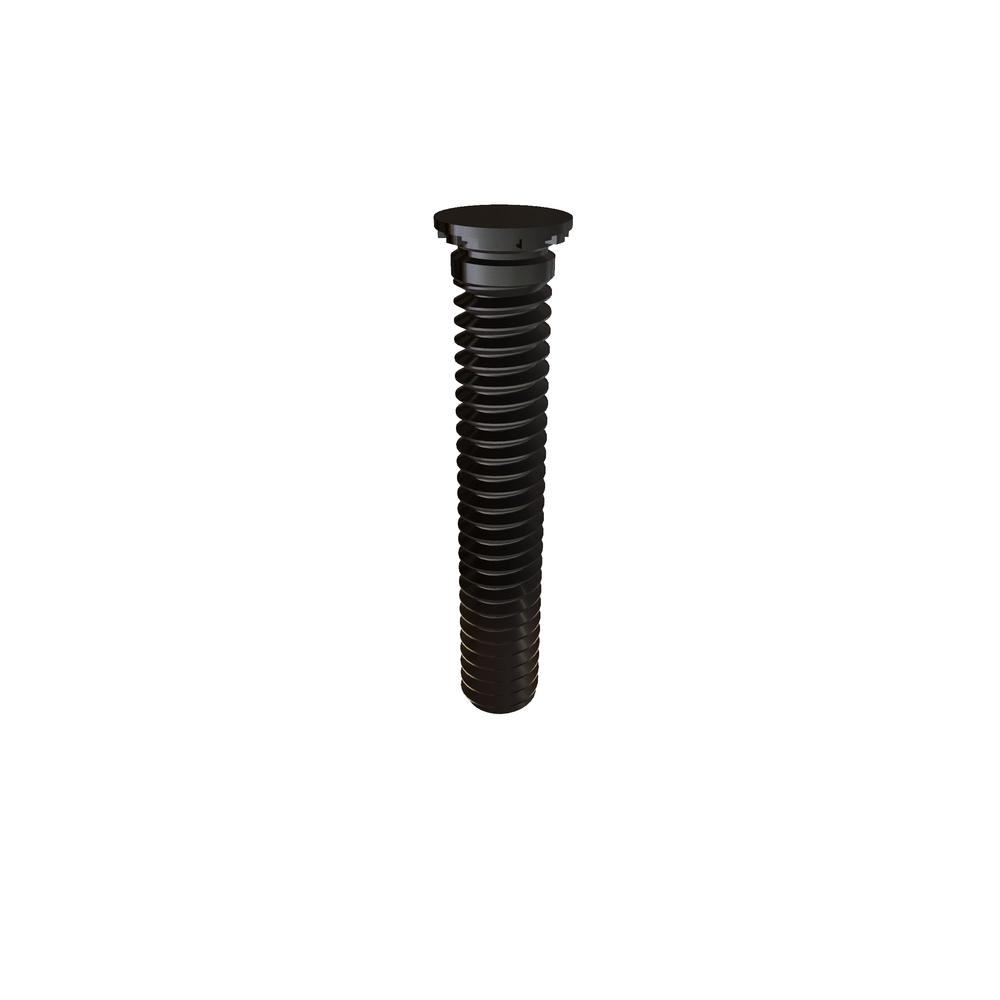

Image for reference purposes only. Actual product may vary.
CHS420-24
SELF CLINCH STUD SST RoHS
Alternate Codes: FHS 0420-24, FHS 0420-24 EQUAL, M63540/1-50C
SELF Clinching STUD Stainless Steel RoHS3
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs |
|---|---|---|---|---|
| $0.432 | $0.324 | $0.259 | $0.235 | $0.225 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Thread Size | 1/4-20 |
| Finish | Passivated Astm A967 |
| Maximum Rec. Nut Tight. Torque in lbs. | 55 lbs |
| Type | Self Clinch Stud |
| Brand | CAPTIVE FASTENERS |
| Hole Diameter | 0.249in |
| Sheet Thickness (Min.) | 0.062in |
| Material | 300 Series Stainless Steel |
| Units | Inch |
| Thread Type | External 2A, ANSI B1.1 (6g ANSI/ASME B1.13M) |
| FORMAT | x |
| Hole Center From Sheet Edge for Bottom Panel (Min.) | 0.312in |
| Used For | CHS- Materials with HRB-70 or less. |
| RoHS | Compliant |
