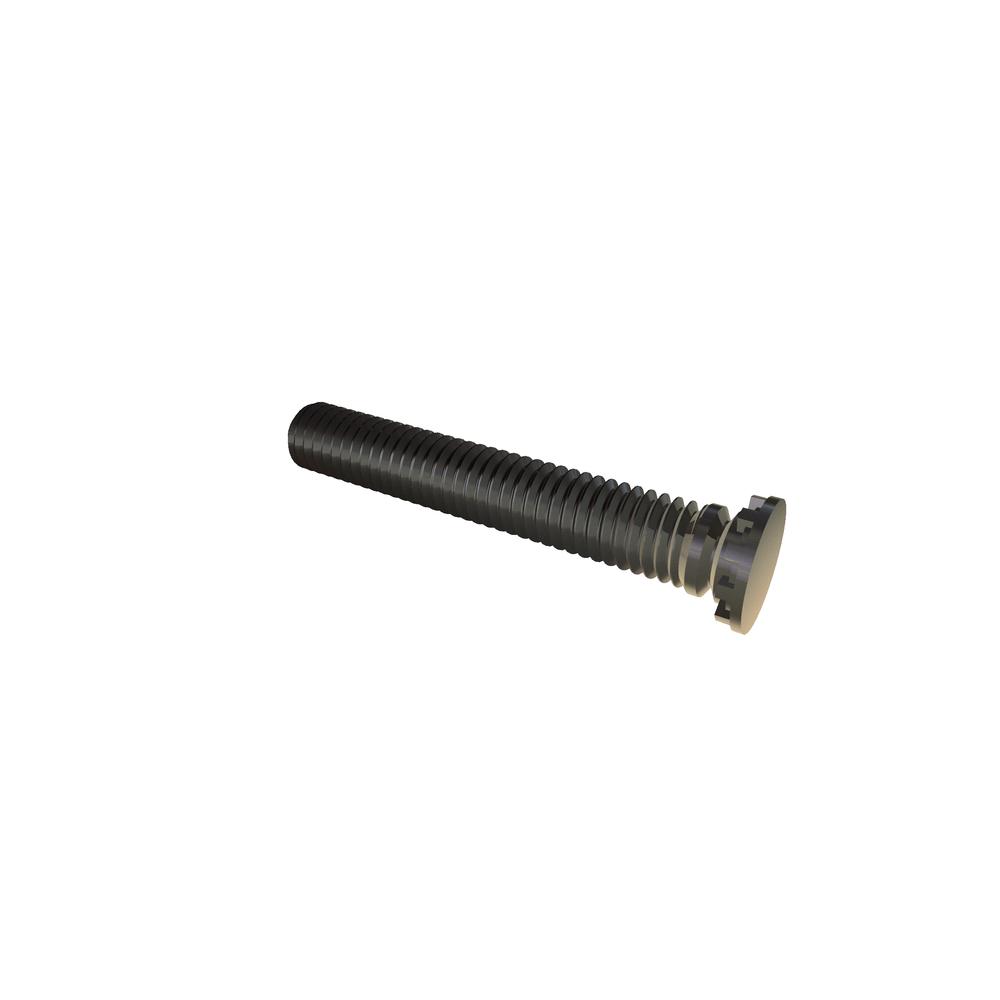

CHSM3-20
SELF CLINCH STUD SST RoHS
Alternate Codes: FHS M3-20
SELF Clinching STUD Stainless Steel RoHS3
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs |
|---|---|---|
| $0.206 | $0.137 | $0.129 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | M3x0.5 |
| Material | 300 Series Stainless Steel |
| Finish | Passivated Astm A967 |
| Units | Metric |
| Thread Type | External 2A, ANSI B1.1 (6g ANSI/ASME B1.13M) |
| FORMAT | x |
| Sheet Thickness (Min.) | 1.50 mm |
| Hole Center From Sheet Edge for Bottom Panel (Min.) | 5.60 mm |
| Hole Diameter | 3.00 mm |
| Used For | CHS- Materials with HRB-70 or less. |
| Brand | CAPTIVE FASTENERS |
| Type | Self Clinch Stud |
| RoHS | Compliant |
| Maximum Rec. Nut Tight. Torque in lbs. | 3.6 lbs |
