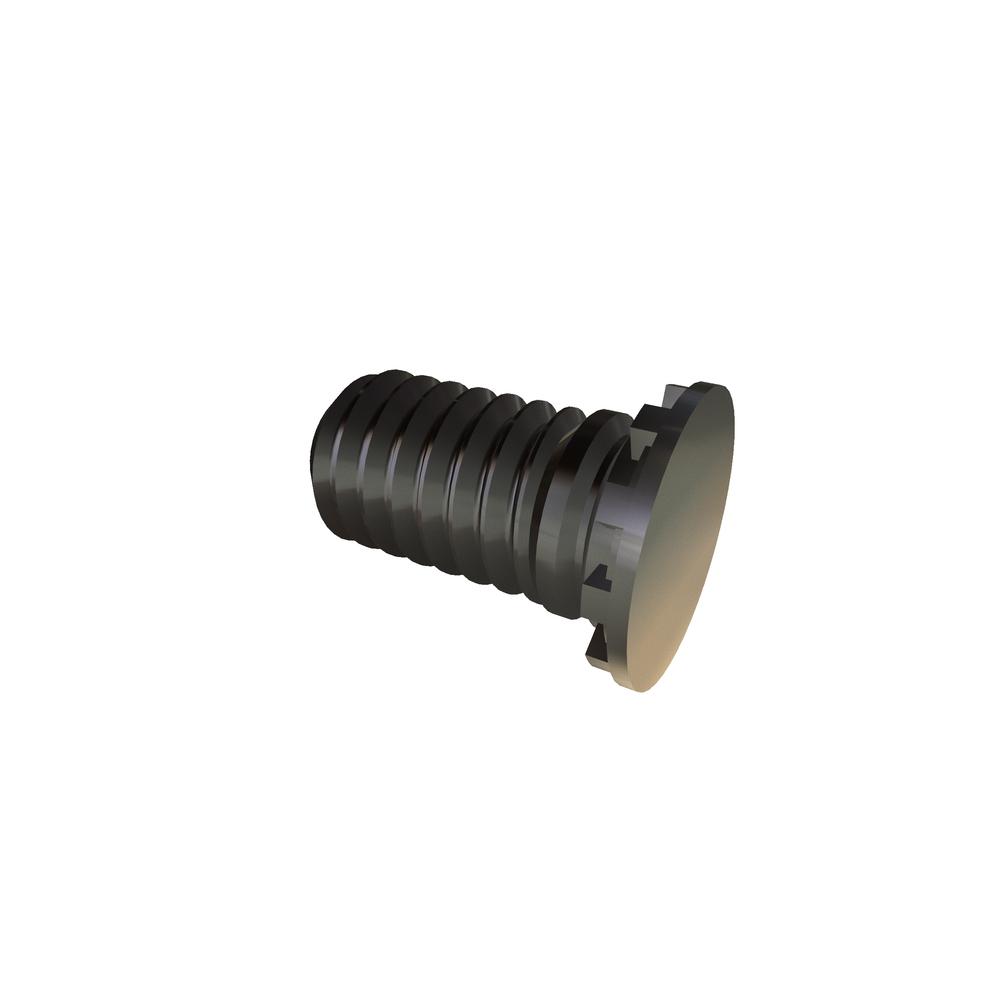

Image for reference purposes only. Actual product may vary.
CHSM4-8
SELF CLINCH STUD SST RoHS
Alternate Codes: FHS M4-8, FHS M4-8 EQUAL
SELF Clinching STUD Stainless Steel RoHS3
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.196 | $0.130 | $0.109 | $0.098 | $0.089 | Larger Quantities |
In Stock
Maximum stock already in cart
| Thread Size | M4x0.7 |
| Finish | Passivated Astm A967 |
| Maximum Rec. Nut Tight. Torque in lbs. | 4.6 lbs |
| Type | Self Clinch Stud |
| Brand | CAPTIVE FASTENERS |
| Hole Diameter | 4.00 mm |
| Sheet Thickness (Min.) | 1.50 mm |
| Material | 300 Series Stainless Steel |
| Units | Metric |
| Thread Type | External 2A, ANSI B1.1 (6g ANSI/ASME B1.13M) |
| FORMAT | x |
| Hole Center From Sheet Edge for Bottom Panel (Min.) | 7.20 mm |
| Used For | CHS- Materials with HRB-70 or less. |
| RoHS | Compliant |
