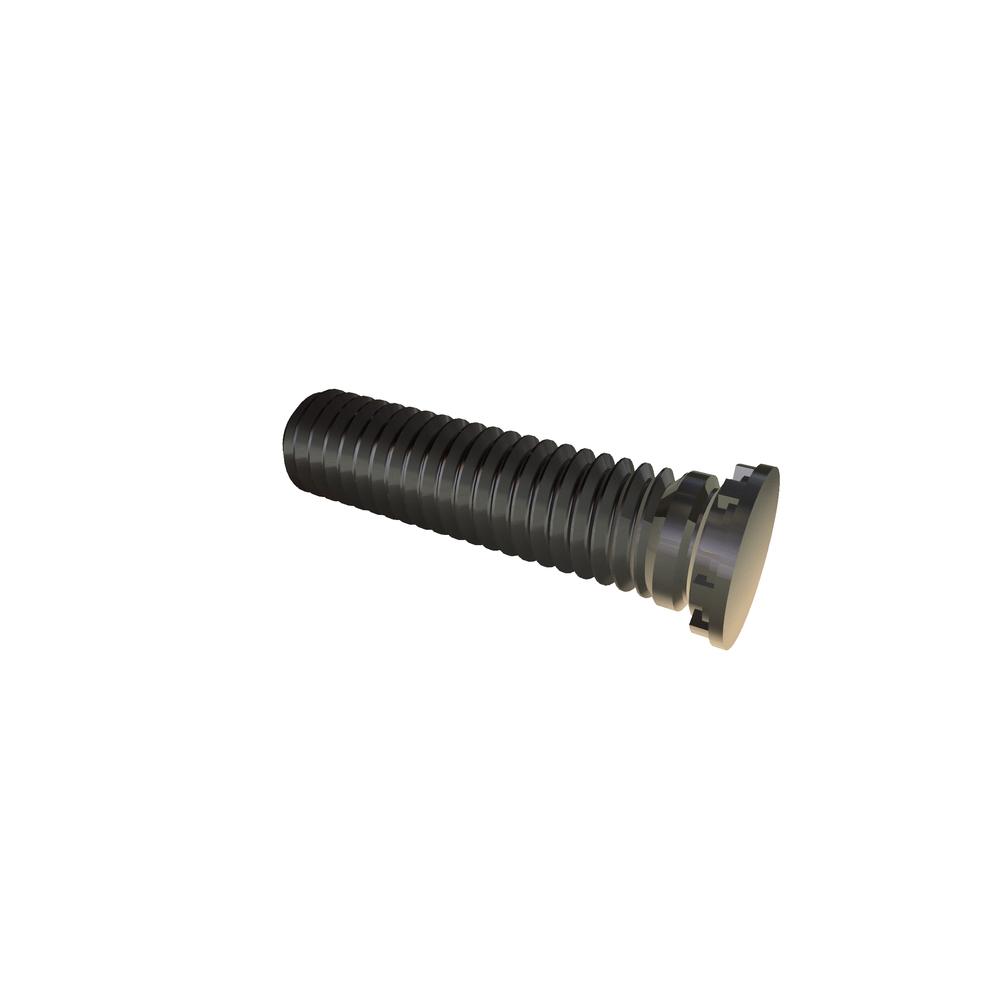

CHSM6-25
SELF CLINCH STUD SST RoHS
Alternate Codes: FHS M6-25, FHS M6-25 EQUAL
SELF Clinching STUD Stainless Steel RoHS3
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | M6x1 |
| Material | 300 Series Stainless Steel |
| Finish | Passivated Astm A967 |
| Units | Metric |
| Thread Type | External 2A, ANSI B1.1 (6g ANSI/ASME B1.13M) |
| FORMAT | x |
| Sheet Thickness (Min.) | 2.20 mm |
| Hole Center From Sheet Edge for Bottom Panel (Min.) | 7.90 mm |
| Hole Diameter | 6.00 mm |
| Used For | CHS- Materials with HRB-70 or less. |
| Brand | CAPTIVE FASTENERS |
| Type | Self Clinch Stud |
| RoHS | Compliant |
| Maximum Rec. Nut Tight. Torque in lbs. | 6.6 lbs |
