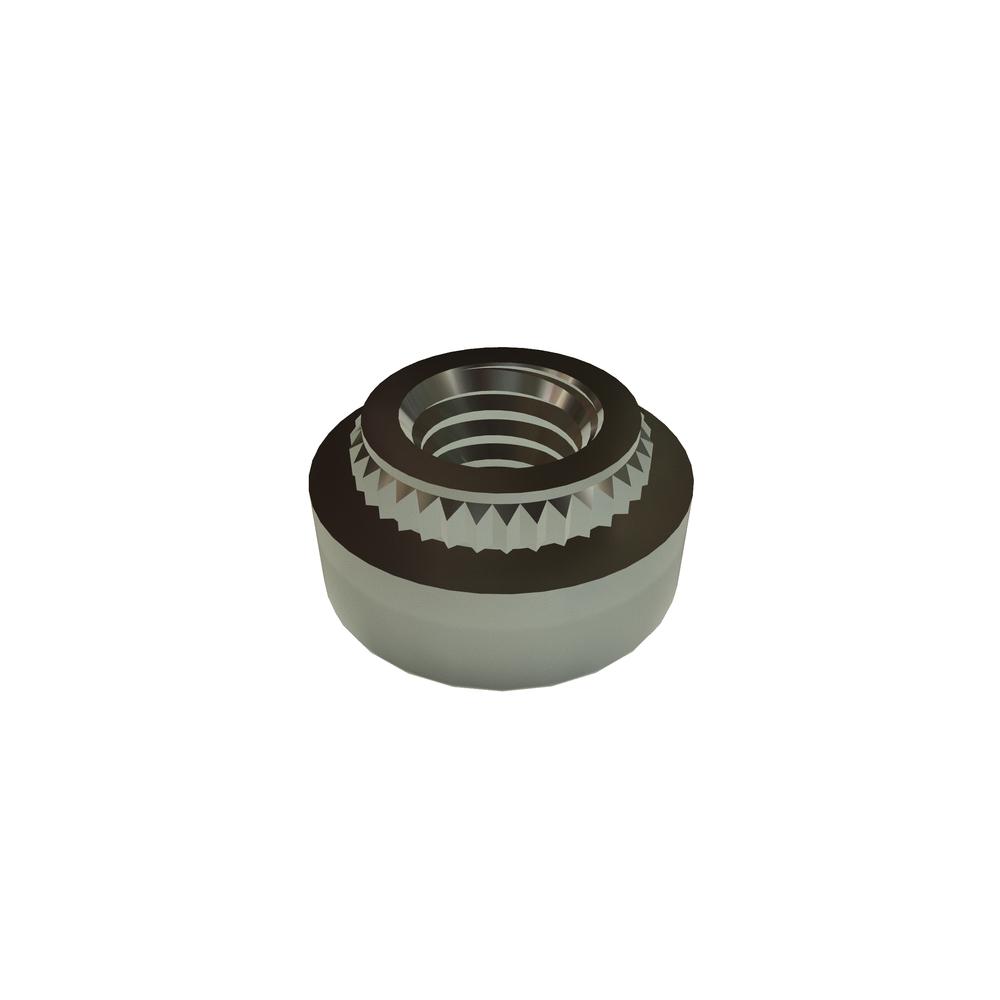

Image for reference purposes only. Actual product may vary.
CKF21032
BROACHING NUT STL TIN PLTD RoHS
Alternate Codes: KF2-032, M45938/12-5, M45938/12-5 EQUAL
BROACHING NUT Steel TIN Plated RoHS3
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.349 | $0.233 | $0.218 | $0.174 | $0.159 | Larger Quantities |
In Stock
Maximum stock already in cart
| Nominal Diameter | 0.190in |
| Thread Size | 10-32 |
| Finish | Electro Tin Plated |
| Thread Fit | Class 2B |
| Brand | CAPTIVE FASTENERS |
| Type | Broaching Nut |
| Bottom Mounting Hole Diameter | 0.272in |
| Bottom Panel Thickness (Min.) | 0.060in |
| Sheet Hardness (Max.) | B-60 |
| Material | Steel |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| FORMAT | x |
| Hole Center From Sheet Edge for Bottom Panel (Min.) | 0.280in |
| RoHS | Compliant |
