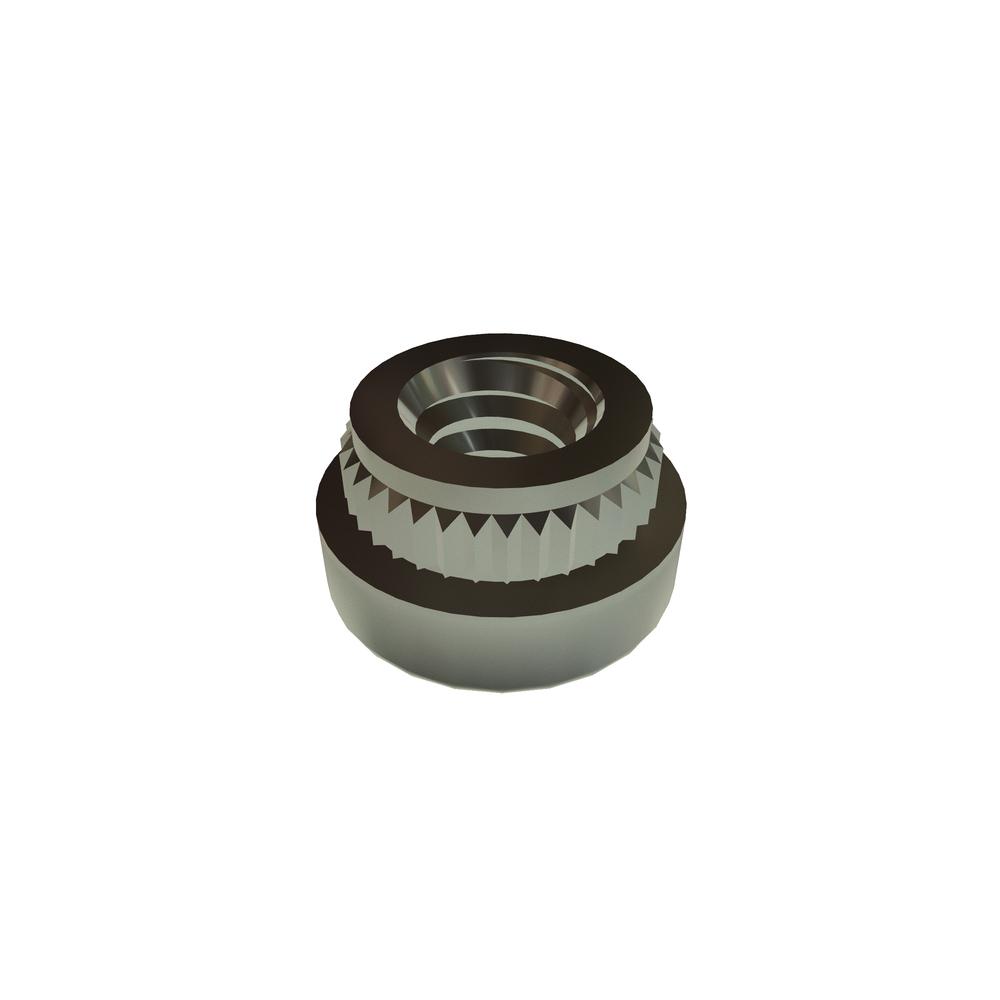

CKF2440
BROACHING NUT STL TIN PLTD RoHS
Alternate Codes: /CKF2-440, 7420-0003, KF2-440, KF2-440 EQUAL, M45938/12-2
BROACHING NUT Steel TIN Plated RoHS3
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.200 | $0.133 | $0.111 | $0.100 | $0.091 | Larger Quantities |
In Stock
| Thread Size | 4-40 |
| Material | Steel |
| Finish | Electro Tin Plated |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.112in |
| FORMAT | x |
| Hole Center From Sheet Edge for Bottom Panel (Min.) | 0.170in |
| Sheet Hardness (Max.) | B-60 |
| Thread Fit | Class 2B |
| Bottom Panel Thickness (Min.) | 0.060in |
| Bottom Mounting Hole Diameter | 0.166in |
| Brand | CAPTIVE FASTENERS |
| Type | Broaching Nut |
| RoHS | Compliant |
