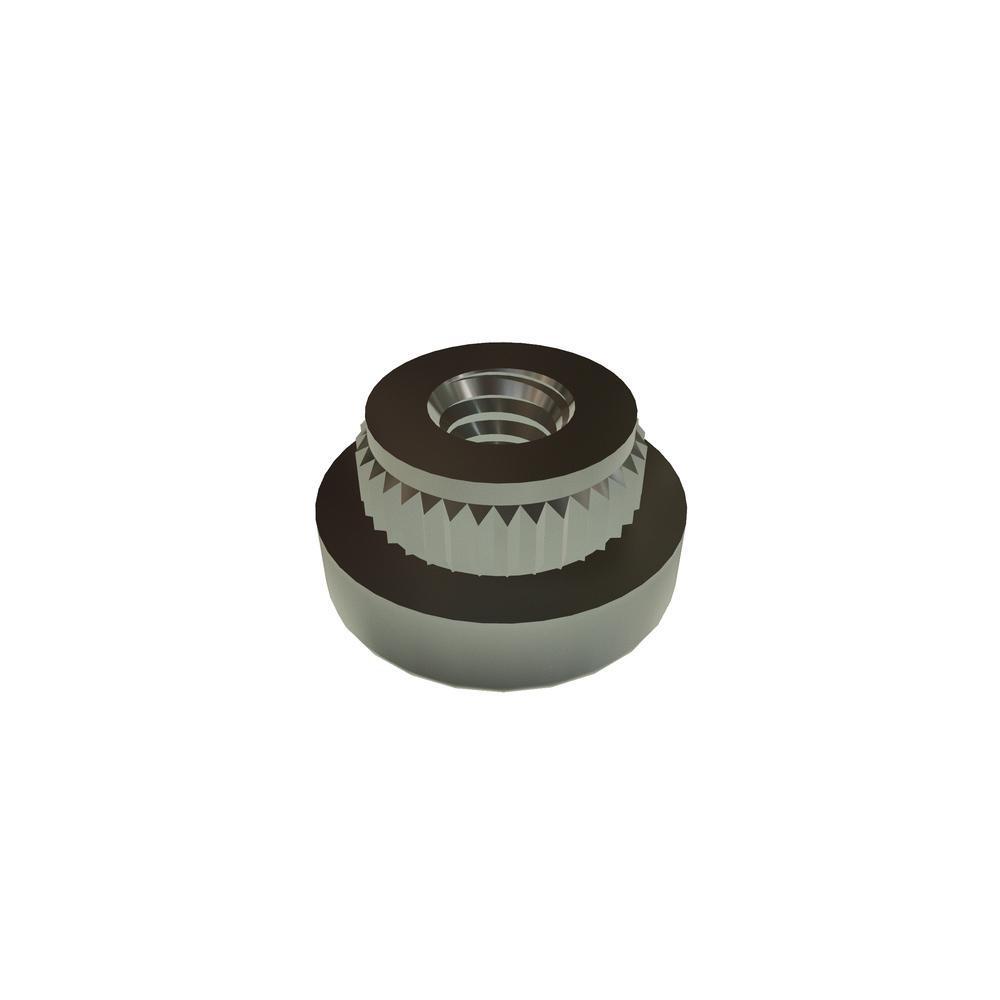

Image for reference purposes only. Actual product may vary.
CKF2M2
BROACHIING NUT STL TIN PLTD RoHS
Alternate Codes: KF2-M2
BROACHIING NUT Steel TIN Plated RoHS3
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.421 | $0.316 | $0.252 | $0.230 | $0.220 | Larger Quantities |
In Stock
Maximum stock already in cart
| Nominal Diameter | 2.00 mm |
| Thread Size | M2x0.4 |
| Finish | Electro Tin Plated |
| Thread Fit | Class 6H |
| Brand | CAPTIVE FASTENERS |
| Type | Broaching Nut |
| Bottom Mounting Hole Diameter | 3.73 mm |
| Bottom Panel Thickness (Min.) | 1.53 mm |
| Sheet Hardness (Max.) | B-60 |
| Material | Steel |
| Units | Metric |
| Thread Type | Metric Coarse |
| FORMAT | x |
| Hole Center From Sheet Edge for Bottom Panel (Min.) | 4.20 mm |
| RoHS | Compliant |
