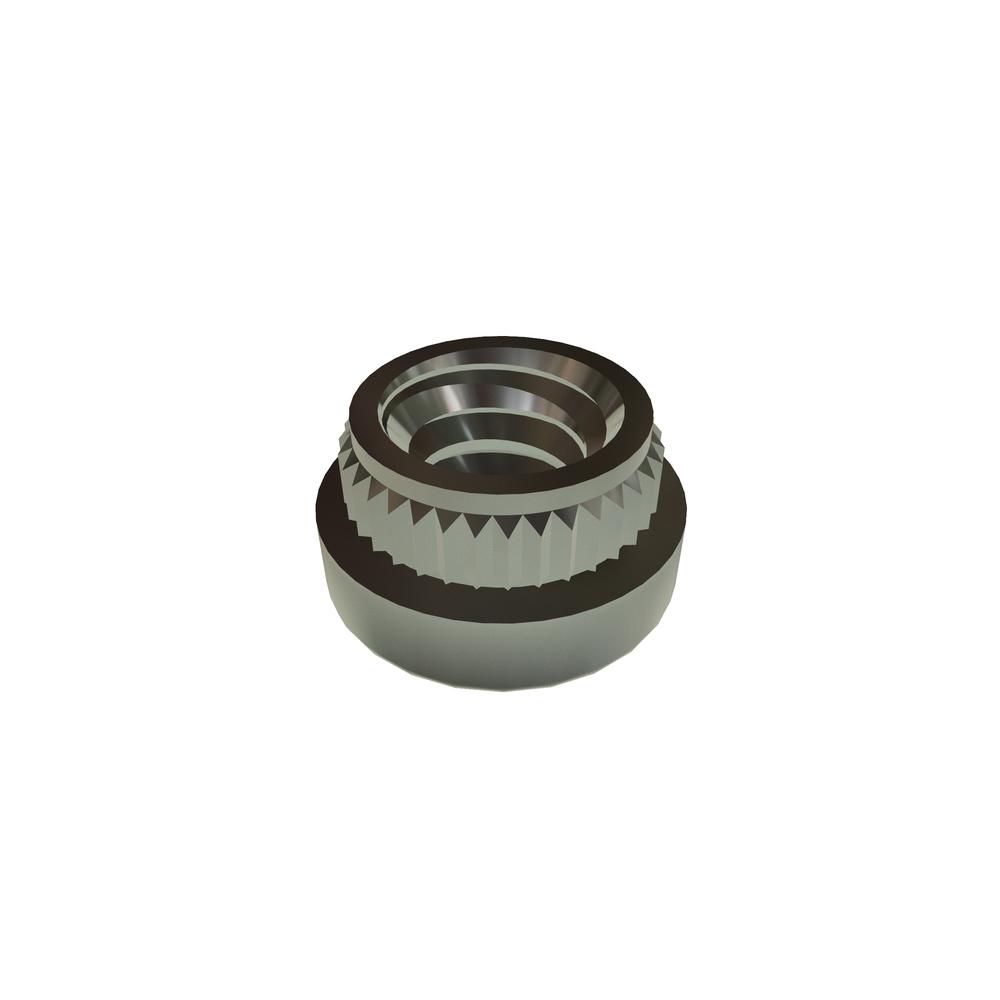

Image for reference purposes only. Actual product may vary.
CKF2M3
BROACHING NUT STL TIN PLTD RoHS
Alternate Codes: /CKF2-M3, KF2-M3
BROACHING NUT Steel TIN Plated RoHS3
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs |
|---|---|---|---|---|
| $0.204 | $0.136 | $0.127 | $0.102 | $0.093 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Nominal Diameter | 3.00 mm |
| Thread Size | M3x0.5 |
| Finish | Electro Tin Plated |
| Thread Fit | Class 6H |
| Brand | CAPTIVE FASTENERS |
| Type | Broaching Nut |
| Bottom Mounting Hole Diameter | 4.22 mm |
| Bottom Panel Thickness (Min.) | 1.53 mm |
| Sheet Hardness (Max.) | B-60 |
| Material | Steel |
| Units | Metric |
| Thread Type | Metric Coarse |
| FORMAT | x |
| Hole Center From Sheet Edge for Bottom Panel (Min.) | 4.40 mm |
| RoHS | Compliant |
