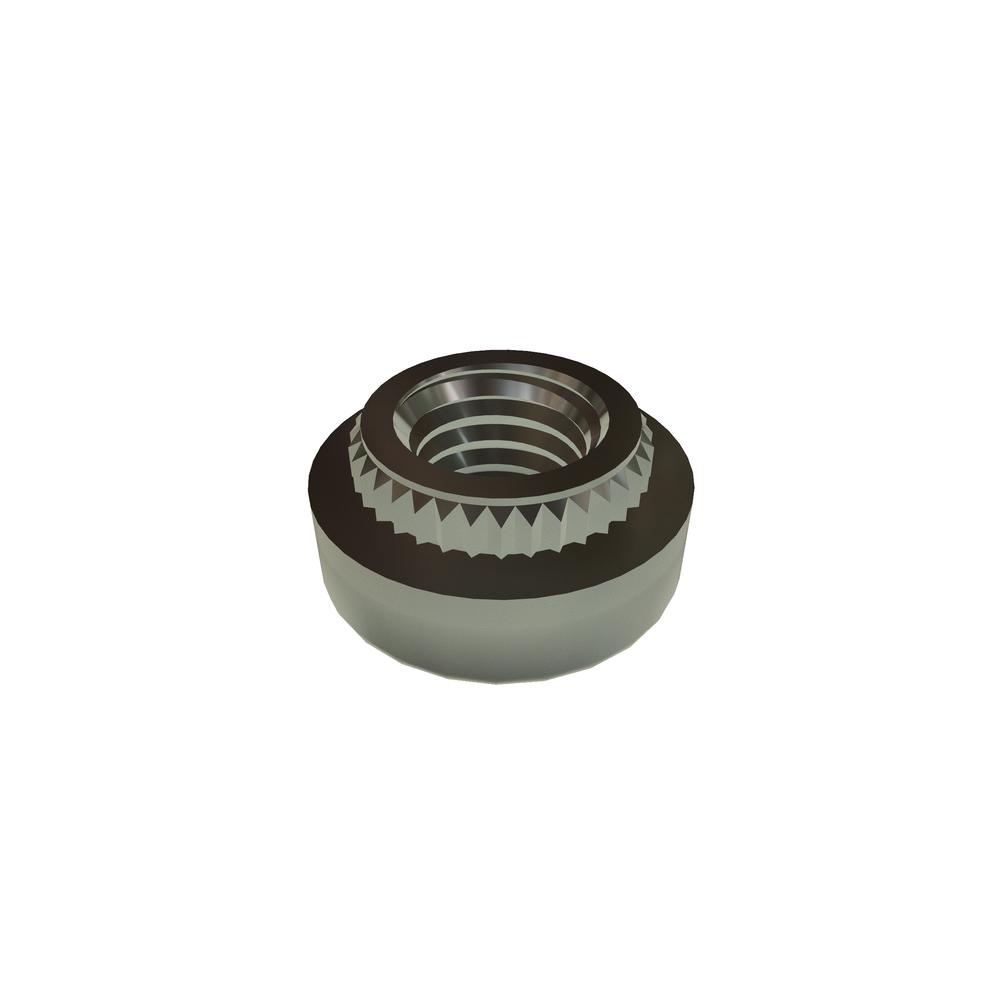

CKF2M5
BROACHING NUT STL TIN PLTD RoHS
Alternate Codes: KF2-M5
BROACHING NUT Steel TIN Plated RoHS3
Pricing per Unit
| 1-99 pcs | 100-249 pcs |
|---|---|
| $0.209 | $0.140 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | M5x0.8 |
| Material | Steel |
| Finish | Electro Tin Plated |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 5.00 mm |
| FORMAT | x |
| Hole Center From Sheet Edge for Bottom Panel (Min.) | 7.10 mm |
| Sheet Hardness (Max.) | B-60 |
| Thread Fit | Class 6H |
| Bottom Panel Thickness (Min.) | 1.53 mm |
| Bottom Mounting Hole Diameter | 6.90 mm |
| Brand | CAPTIVE FASTENERS |
| Type | Broaching Nut |
| RoHS | Compliant |
