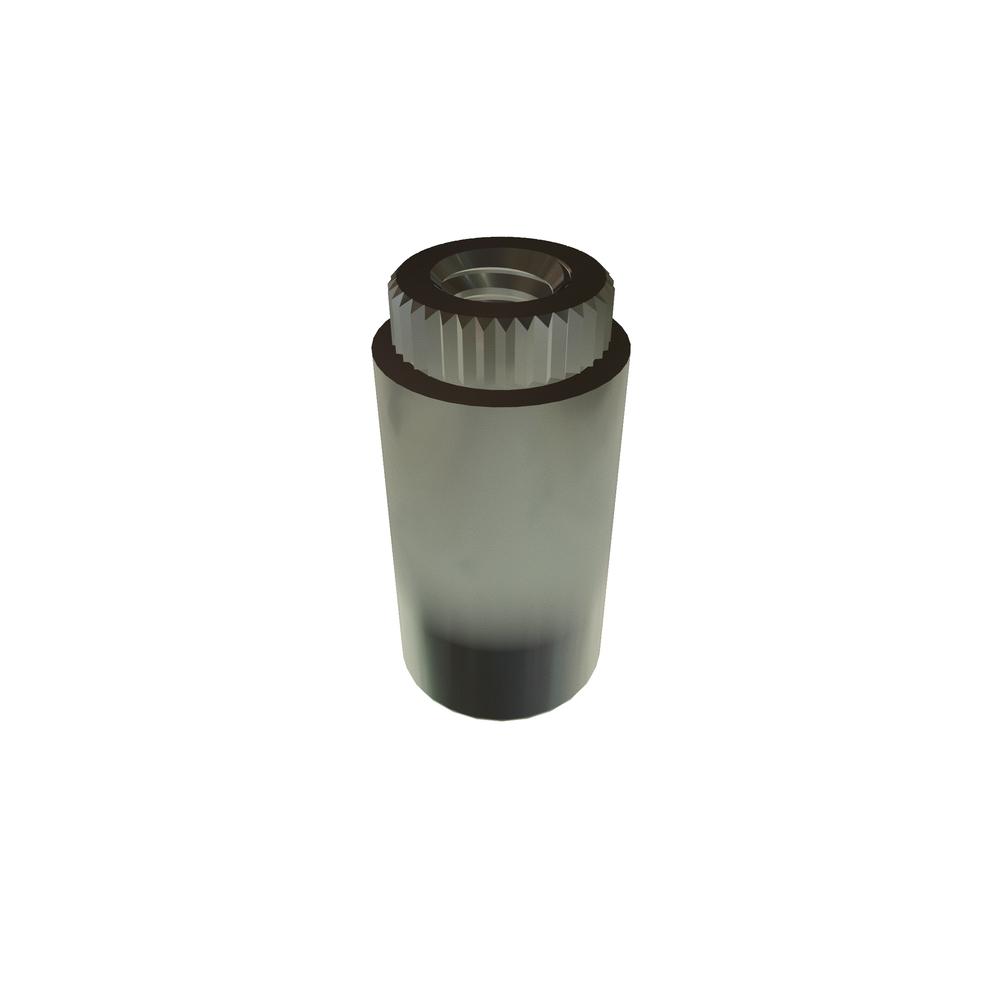

CKFE440-12
SELF BROACHING STDF STL TIN PLTD RoHS
Alternate Codes: 500525-00, KFE 440-12, KFE 440-12 EQUAL
SELF BROACHING Standoff Steel TIN Plated RoHS3
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.473 | $0.315 | $0.296 | $0.237 | $0.215 | Larger Quantities |
In Stock
| Thread Size | 4-40 |
| Material | Steel |
| Finish | Electro Tin Plating Astm B545 Class B |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.112in |
| FORMAT | x |
| Hole Center From Sheet Edge for Bottom Panel (Min.) | 0.170in |
| Sheet Hardness (Max.) | B-60 |
| Thread Fit | Class 2B |
| Bottom Panel Thickness (Min.) | 0.060in |
| Bottom Mounting Hole Diameter | 0.166in |
| Brand | CAPTIVE FASTENERS |
| Type | Self Broaching Standoff |
| RoHS | Compliant |
