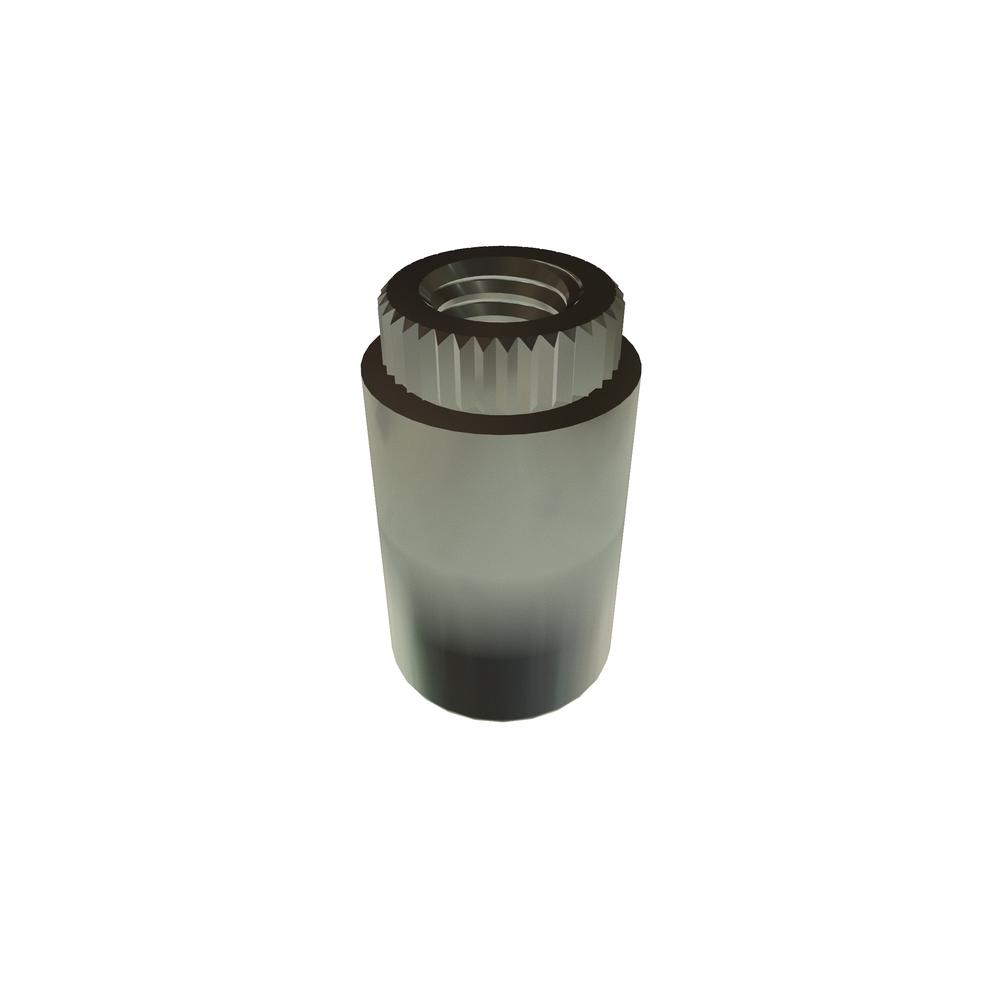

Image for reference purposes only. Actual product may vary.
CKFEM3-8
SELF BROACHING STDF STL TIN PLTD RoHS
Alternate Codes: KFE M3-8
SELF BROACHING Standoff Steel TIN Plated RoHS3
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Nominal Diameter | 3.00 mm |
| Thread Size | M3x0.5 |
| Finish | Electro Tin Plating Astm B545 Class B |
| Clear Hole Size (Max.) | 0.22 mm |
| Thread Fit | Class 6H |
| Brand | CAPTIVE FASTENERS |
| Type | Self Broaching Standoff |
| Bottom Mounting Hole Diameter | 4.22 mm |
| Bottom Panel Thickness (Min.) | 1.50 mm |
| Sheet Hardness (Max.) | B-60 |
| Material | Steel |
| Anvil Hole | 0.19 mm |
| Units | Metric |
| Thread Type | Metric Coarse |
| FORMAT | x |
| Hole Center From Sheet Edge for Bottom Panel (Min.) | 4.40 mm |
| RoHS | Compliant |
