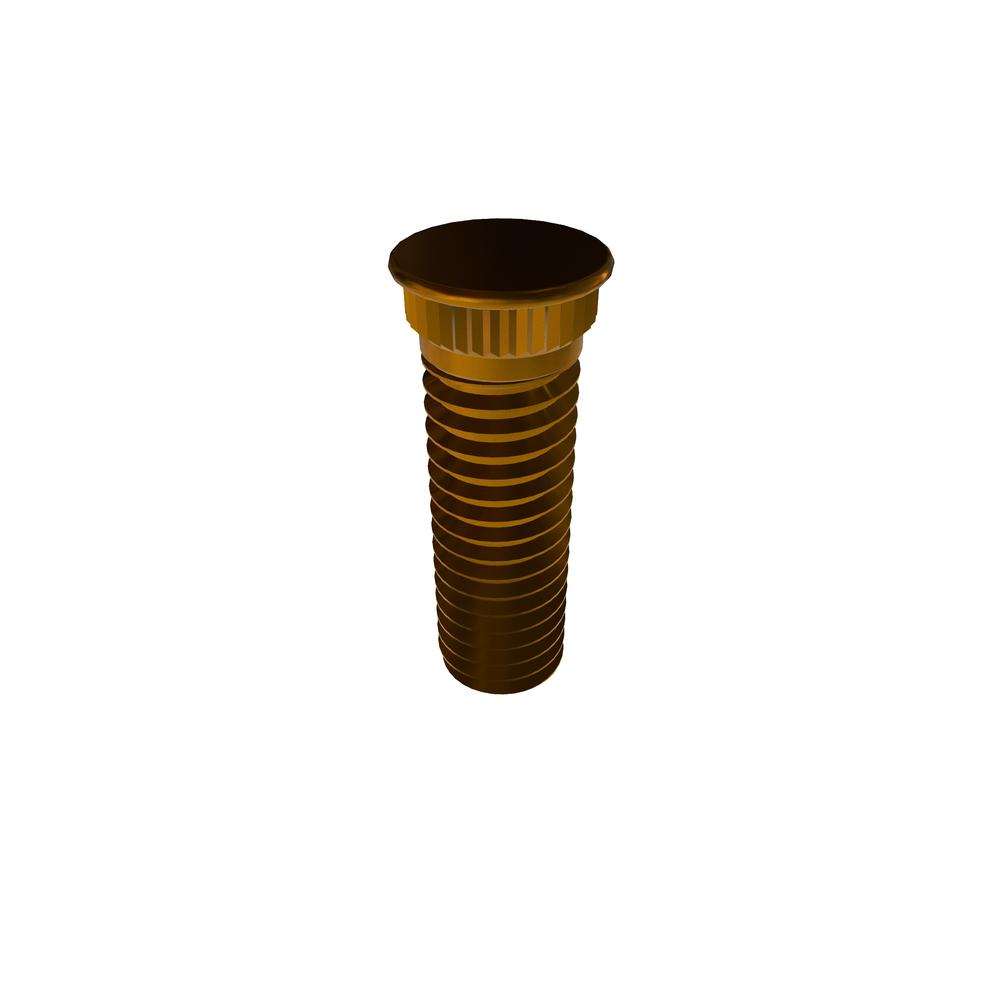

Image for reference purposes only. Actual product may vary.
CKFH1032-10
BROACHING STUD PHOS BRZ TIN PLTD RoHS
Alternate Codes: KFH 032-10
BROACHING STUD Phospher Bronze TIN Plated RoHS3
Pricing per Unit
| 1-99 pcs |
|---|
| $0.423 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Nominal Diameter | 0.190in |
| Thread Size | 10-32 |
| Finish | Electro Tin Plating Astm B545 Class B |
| Clear Hole Size (Max.) | 0.220in |
| Thread Fit | Class 2A |
| Brand | CAPTIVE FASTENERS |
| Type | Broaching Stud |
| Bottom Mounting Hole Diameter | 0.189in |
| Bottom Panel Thickness (Min.) | 0.060in |
| Sheet Hardness (Max.) | B-55 |
| Material | Phosphor Bronze |
| Anvil Hole | 0.191in |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| FORMAT | x |
| Hole Center From Sheet Edge for Bottom Panel (Min.) | 0.200in |
| RoHS | Compliant |
