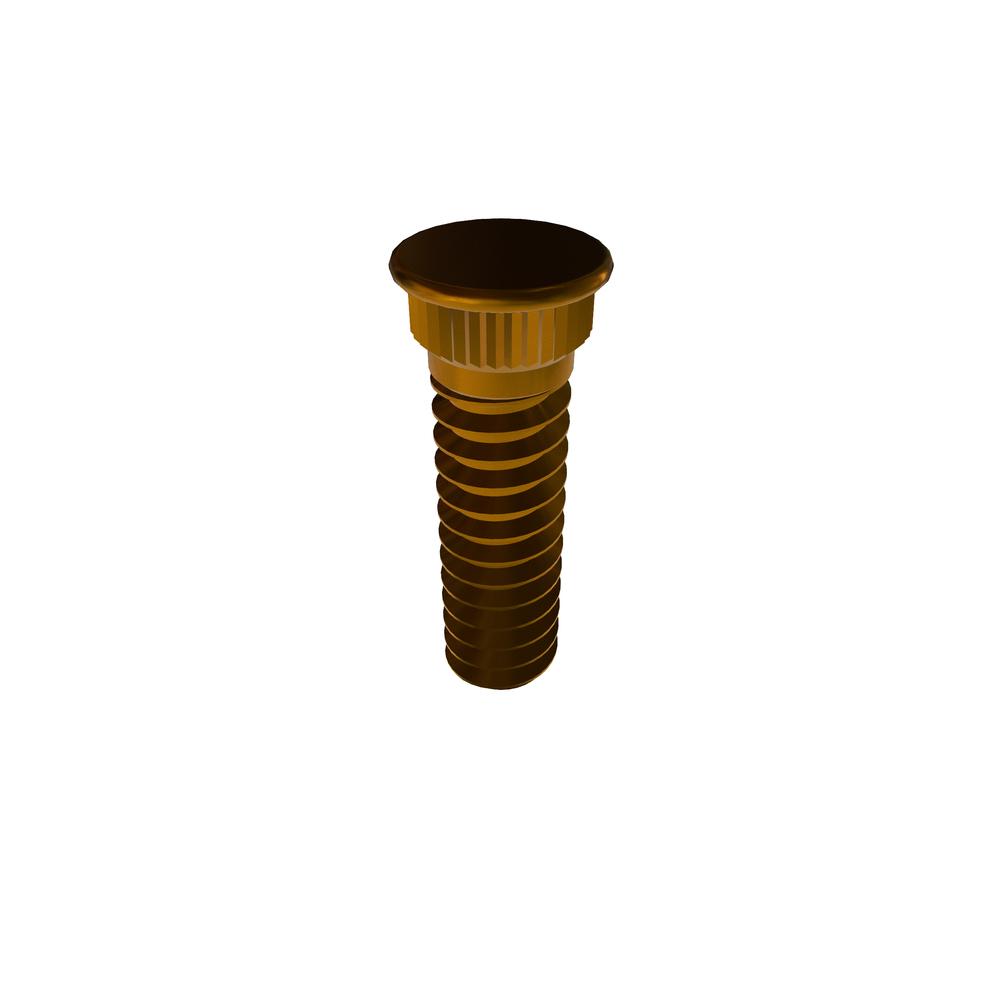

CKFH632-8
BROACHING STUD PHOS BRZ TIN PLTD RoHS
Alternate Codes: KFH 632-8, KFH 632-8 EQUAL
BROACHING STUD Phospher Bronze TIN Plated RoHS3
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | 6-32 |
| Material | Phosphor Bronze |
| Finish | Electro Tin Plating Astm B545 Class B |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.138in |
| FORMAT | x |
| Hole Center From Sheet Edge for Bottom Panel (Min.) | 0.190in |
| Sheet Hardness (Max.) | B-55 |
| Thread Fit | Class 2A |
| Bottom Panel Thickness (Min.) | 0.060in |
| Bottom Mounting Hole Diameter | 0.140in |
| Brand | CAPTIVE FASTENERS |
| Type | Broaching Stud |
| RoHS | Compliant |
| Clear Hole Size (Max.) | 0.195in |
| Anvil Hole | 0.166in |
