CKFS2632

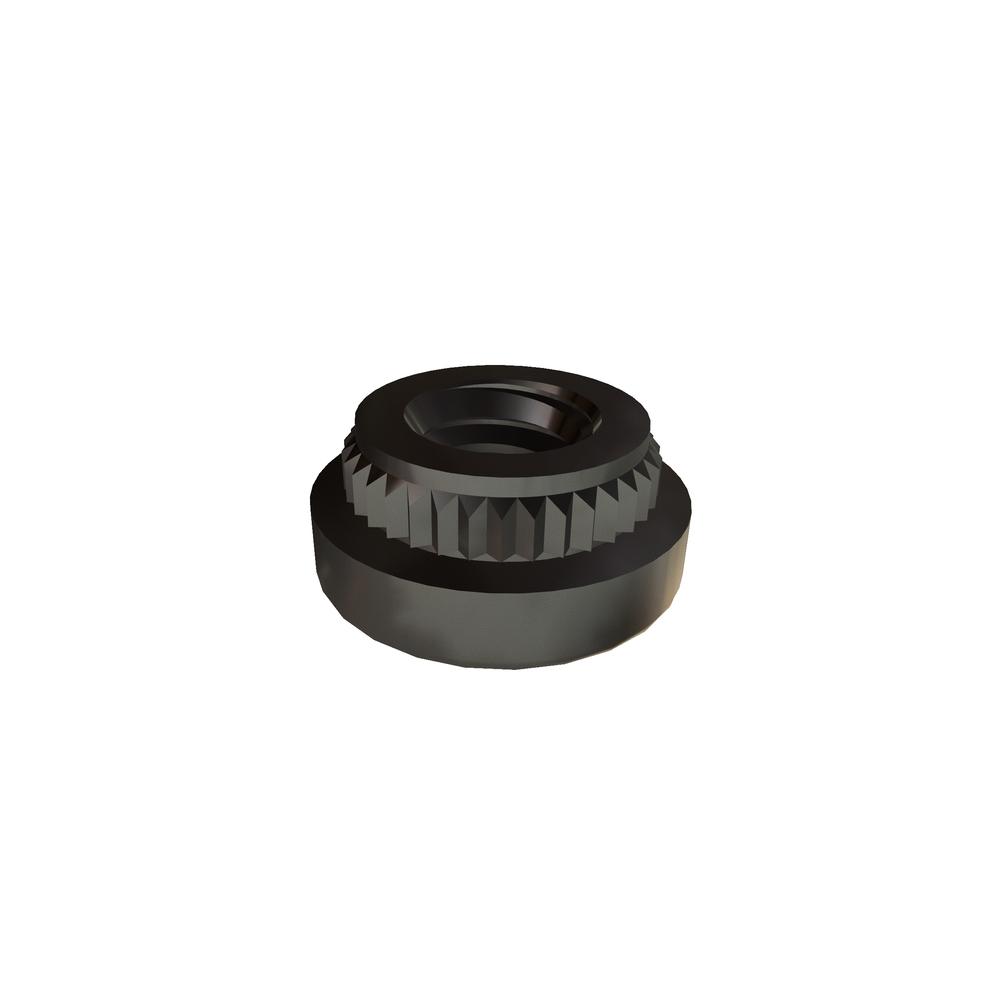

BROACHING NUT SST RoHS
Alternate Codes: /CKFS2-632, 20-16-006, KFS2-632, KFS2-632 EQUAL
BROACHING NUT Stainless Steel RoHS3
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.422 | $0.317 | $0.253 | $0.230 | $0.220 | Larger Quantities |
In Stock
| Thread Size | 6-32 |
| Material | 300 Stainless Steel |
| Finish | Passivated Astm A967 |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.138in |
| FORMAT | x |
| Hole Center From Sheet Edge for Bottom Panel (Min.) | 0.220in |
| Sheet Hardness (Max.) | B-60 |
| Thread Fit | Class 2B |
| Bottom Panel Thickness (Min.) | 0.060in |
| Bottom Mounting Hole Diameter | 0.213in |
| Brand | CAPTIVE FASTENERS |
| Type | Broaching Nut |
| RoHS | Compliant |
