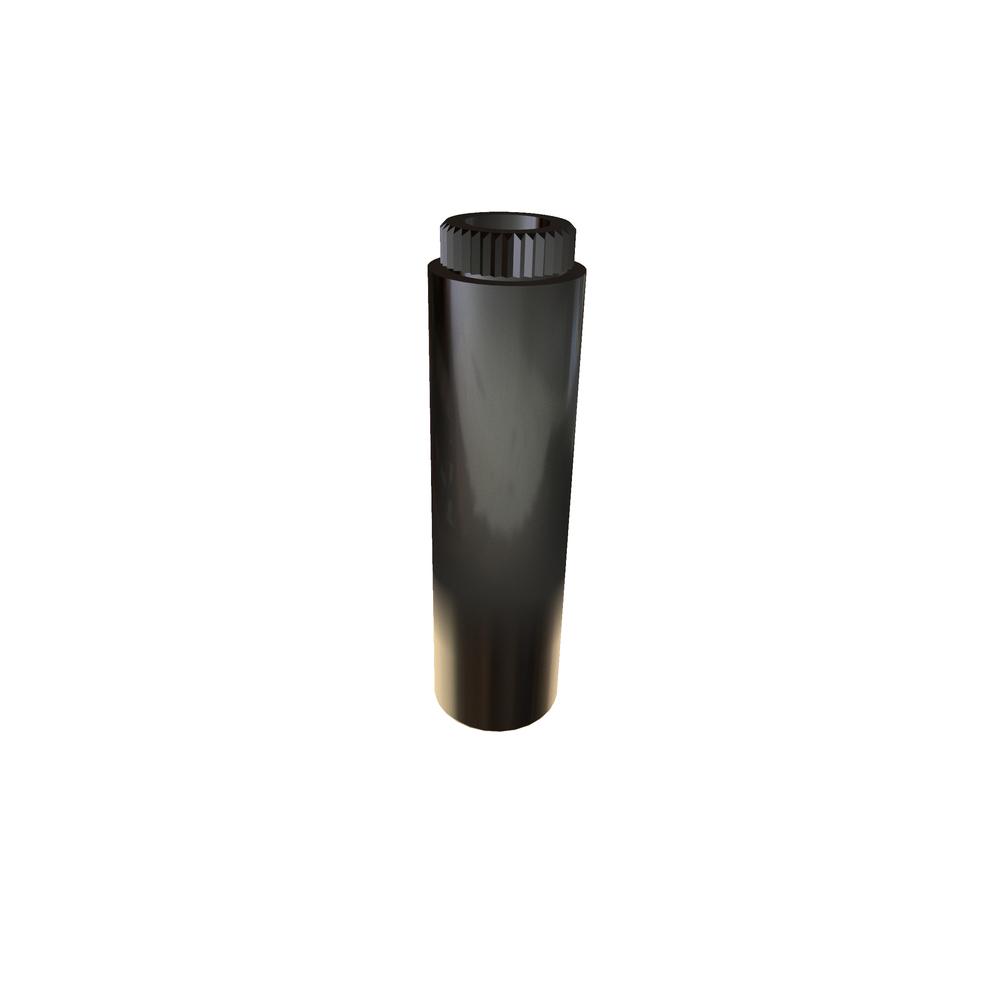

CKFSE440-24
BROACHING STDF SST RoHS
Alternate Codes: KFSE 440-24
BROACHING Standoff Stainless Steel RoHS3
Pricing per Unit
| 1-49 pcs | 50-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | Call For |
|---|---|---|---|---|---|
| $1.278 | $0.994 | $0.895 | $0.813 | $0.778 | Larger Quantities |
In Stock
| Thread Size | 4-40 |
| Material | 300 Stainless Steel |
| Finish | Passivated Astm A967 |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.112in |
| FORMAT | x |
| Hole Center From Sheet Edge for Bottom Panel (Min.) | 0.170in |
| Sheet Hardness (Max.) | B-70 |
| Thread Fit | Class 2B |
| Bottom Panel Thickness (Min.) | 0.060in |
| Bottom Mounting Hole Diameter | 0.166in |
| Brand | CAPTIVE FASTENERS |
| Type | Broaching Standoff |
| RoHS | Compliant |
| E Thread Length (Min.) | 0.375in |
