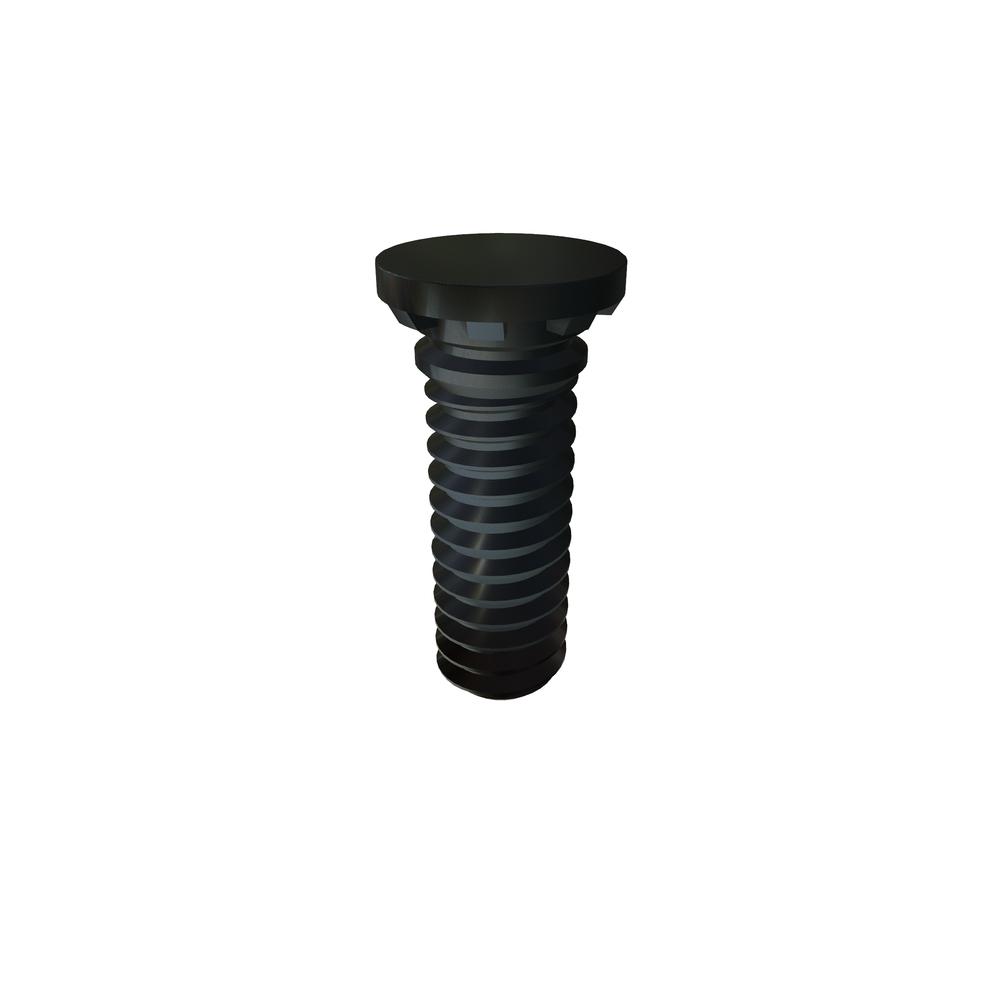

Image for reference purposes only. Actual product may vary.
HCH420-12R
HIGH-TORQ SELF CLINCH STUD STL ZN CR3
Alternate Codes: /HCH420-12, HFH 0420-12 EQUAL, HFH 0420-12R
HIGH-TORQ SELF Clinching STUD Steel Zinc PLATE RoHS3
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.214 | $0.143 | $0.134 | $0.107 | $0.097 | Larger Quantities |
In Stock
Maximum stock already in cart
| Thread Size | 1/4-20 |
| Finish | Zinc Cr3 |
| Maximum Hole In Attach | 0.312in |
| Type | High-torq Self Clinch Stud |
| Brand | CAPTIVE FASTENERS |
| Hole Diameter | 0.250in |
| Sheet Thickness (Min.) | 0.060in |
| Material | Heat-treated Medium Carbon Steel |
| Units | Inch |
| Thread Type | External 2A, ANSI B1.1 (6g ANSI/ASME B1.13M) |
| FORMAT | x |
| Hole Center From Sheet Edge for Bottom Panel (Min.) | 0.460in |
| Used For | Cold-rolled Steel or 5052-H34 Aluminum |
| RoHS | Compliant |
