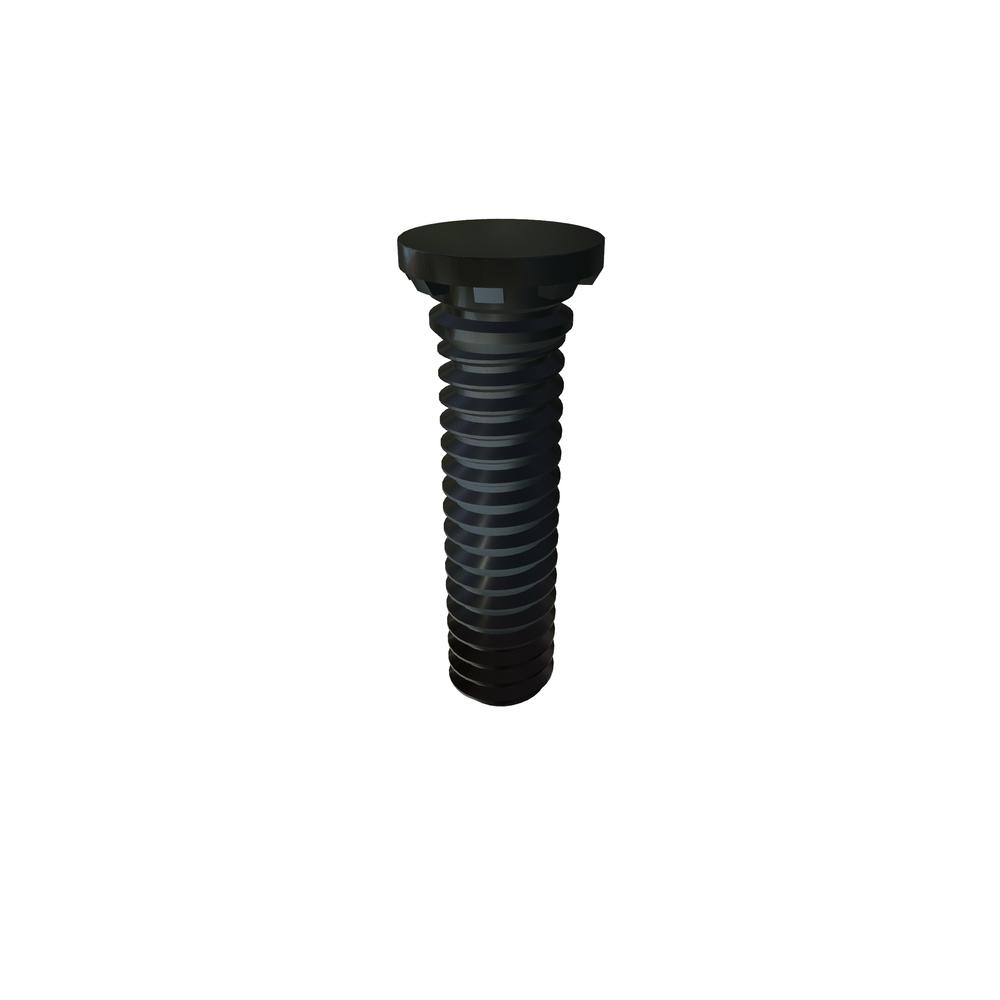

HCH420-16R
HIGH-TORQ SELF CLINCH STUD STL ZN CR3
Alternate Codes: HFH 0420-16
HIGH-TORQ SELF Clinching STUD Steel Zinc PLATE RoHS3
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs |
|---|---|---|
| $0.230 | $0.153 | $0.144 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | 1/4-20 |
| Material | Heat-treated Medium Carbon Steel |
| Finish | Zinc Cr3 |
| Units | Inch |
| Thread Type | External 2A, ANSI B1.1 (6g ANSI/ASME B1.13M) |
| FORMAT | x |
| Sheet Thickness (Min.) | 0.060in |
| Hole Center From Sheet Edge for Bottom Panel (Min.) | 0.460in |
| Hole Diameter | 0.250in |
| Used For | Cold-rolled Steel or 5052-H34 Aluminum |
| Brand | CAPTIVE FASTENERS |
| Type | High-torq Self Clinch Stud |
| RoHS | Compliant |
| Maximum Hole In Attach | 0.312in |
