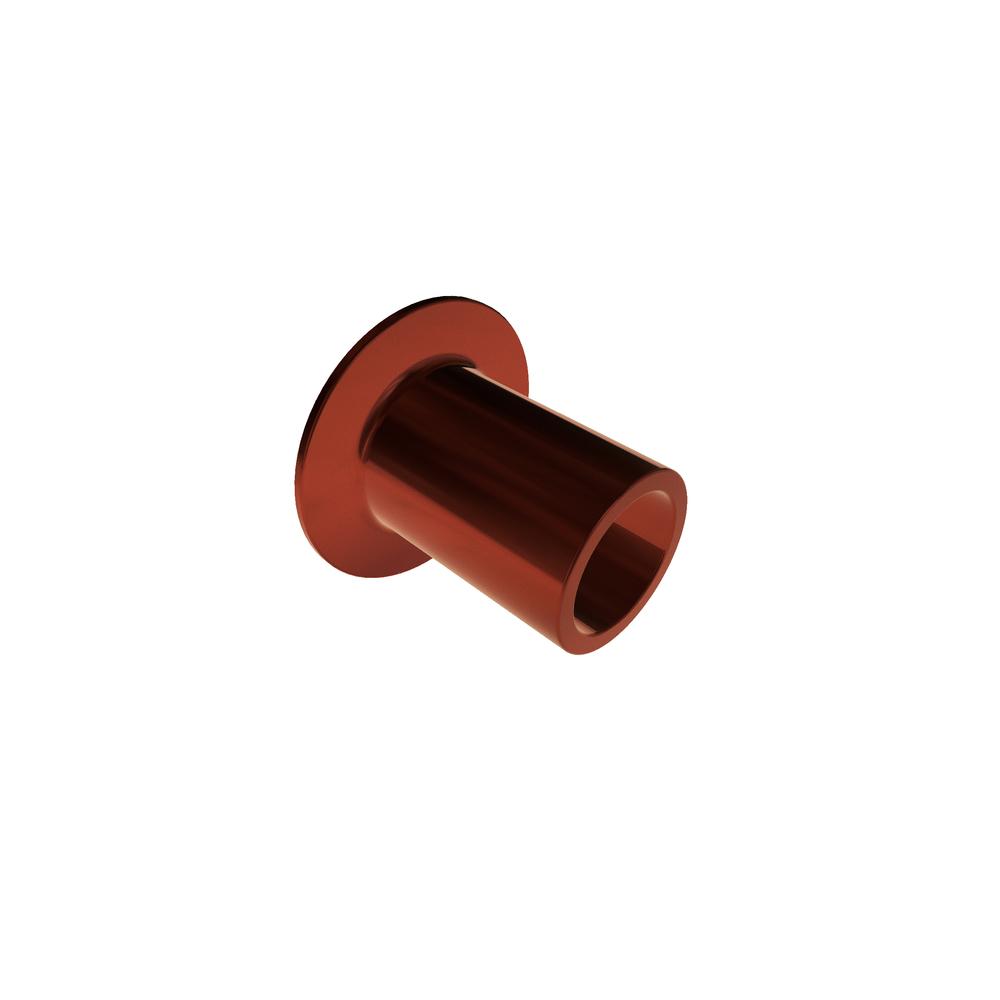

3/32 X 7/32 SEMI-TUB RIVET BR NI PLT
MS16535-67N
| Item Id | MS16535-67N |
| Description | 3/32 X 7/32 SEMI-TUB RIVET BR NI PLT |
| Extended Description | |
| Packaging | EA |
| Brand | VARIED |
| Finish | Nickel Plated |
| Head Diameter | 7 |
| Head Diameter (Max.) | 0.152in |
| Head Diameter (Min.) | 0.142in |
| Head Height (Max.) | 0.026in |
| Head Height (Min.) | 0.020in |
| Head Type | Oval |
| Hole Depth Min | 0.064in |
| Hole Diameter (Max.) | 0.068in |
| Hole Diameter (Min.) | 0.062in |
| Material | Brass |
| Meets (Standard) | ASME B18.7 |
| Nominal Diameter | 0.094in |
| Total Shank Diameter (Max.) | 0.089in |
| Total Shank Diameter (Min.) | 0.085in |
| Type | Semi-tubular |
| Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
