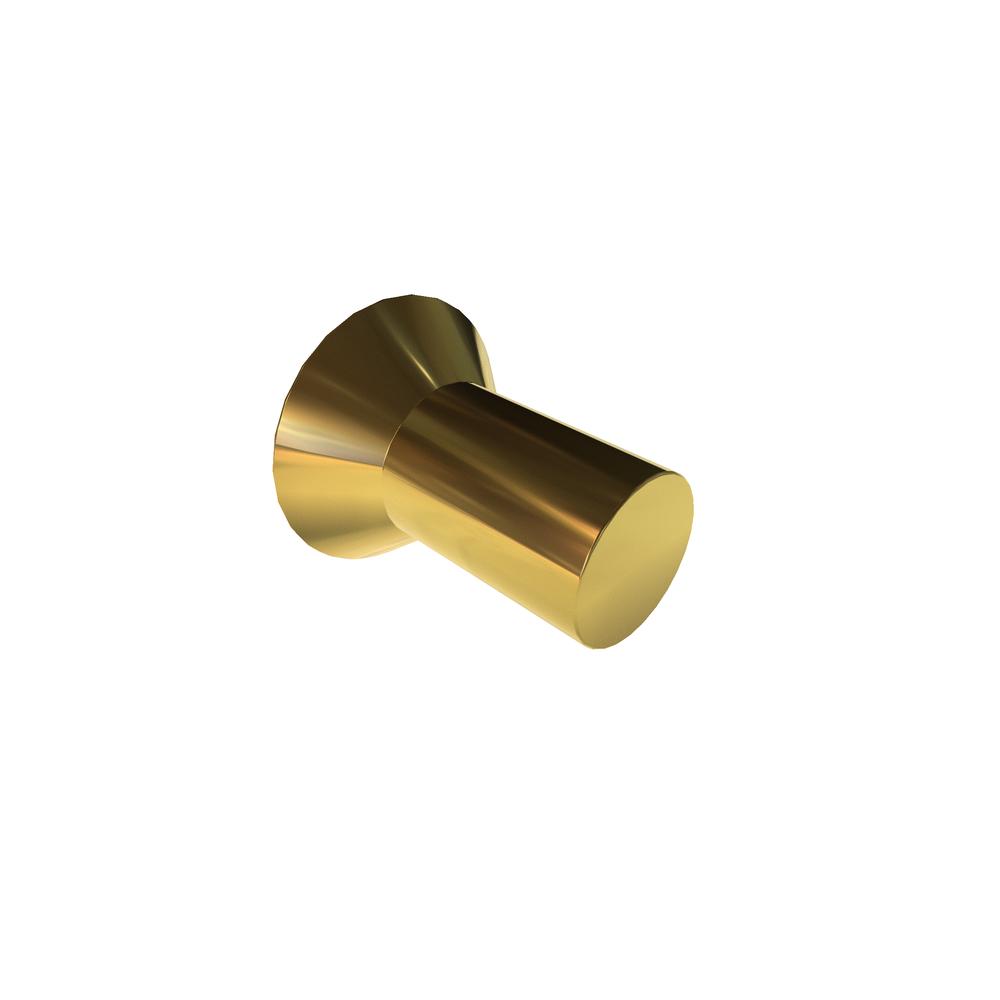

MS20426AD4-4
100 DEG CTSK RIVET HALF-HARD 2117-T4
Alternate Codes: 96685A170
2117-T4 ALUM GOLD ANOD
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.312 | $0.164 | $0.130 | $0.120 | $0.101 | Larger Quantities |
In Stock
| Material | 2117-T4 Aluminium |
| Finish | Gold Anodize |
| Units | Inch |
| Nominal Diameter | 0.125in |
| Head Type | 100 Countersink |
| Head Height | 0.042in |
| Head Diameter | 17 |
| Total Shank Diameter (Min.) | 0.124in |
| Total Shank Diameter (Max.) | 0.128in |
| Drill Size | 30 |
| Clinch Allowance | 0.125in |
| Hole Diameter (Max.) | 0.129in |
| Brand | VARIED |
| Type | Solid-rivets |
| Additional Industry Cross Reference | 96685A170 |
| Head Diameter (Max.) | 0.229in |
| Head Diameter (Min.) | 0.221in |
