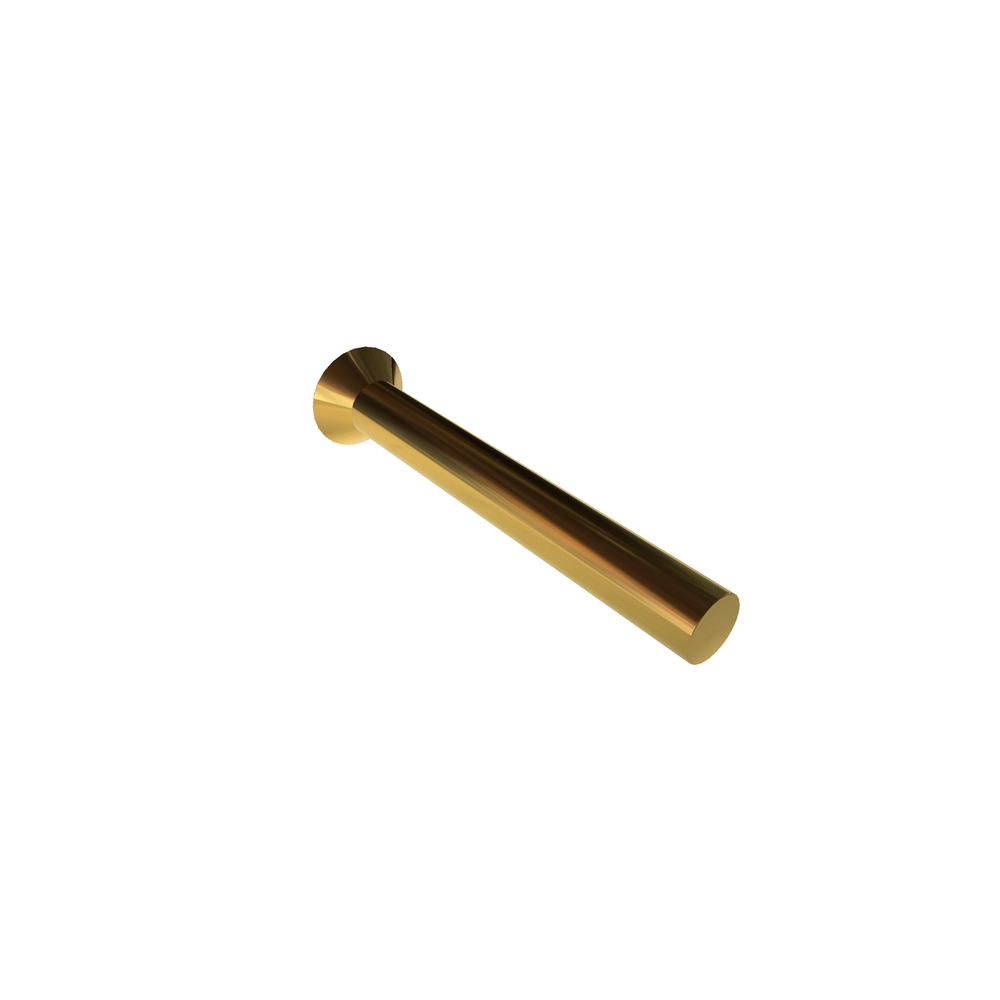

Image for reference purposes only. Actual product may vary.
MS20427-5C20
100 DEG CTSK RIVET PLT STL
Alternate Codes: N/A
STL CAD II PLT
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Nominal Diameter | 0.156in |
| Finish | Cadmium Plated |
| Type | Solid-rivets |
| Head Type | 100 Countersink |
| Material | Steel |
| Brand | VARIED |
| Hole Diameter (Max.) | 0.161in |
| Clinch Allowance | 0.156in |
| Drill Size | 20 |
| Total Shank Diameter (Max.) | 0.159in |
| Head Diameter | 24 |
| Units | Inch |
| Head Height | 0.061in |
| Total Shank Diameter (Min.) | 0.155in |
| Head Diameter (Max.) | 0.298in |
| Head Diameter (Min.) | 0.257in |
