PMSD429

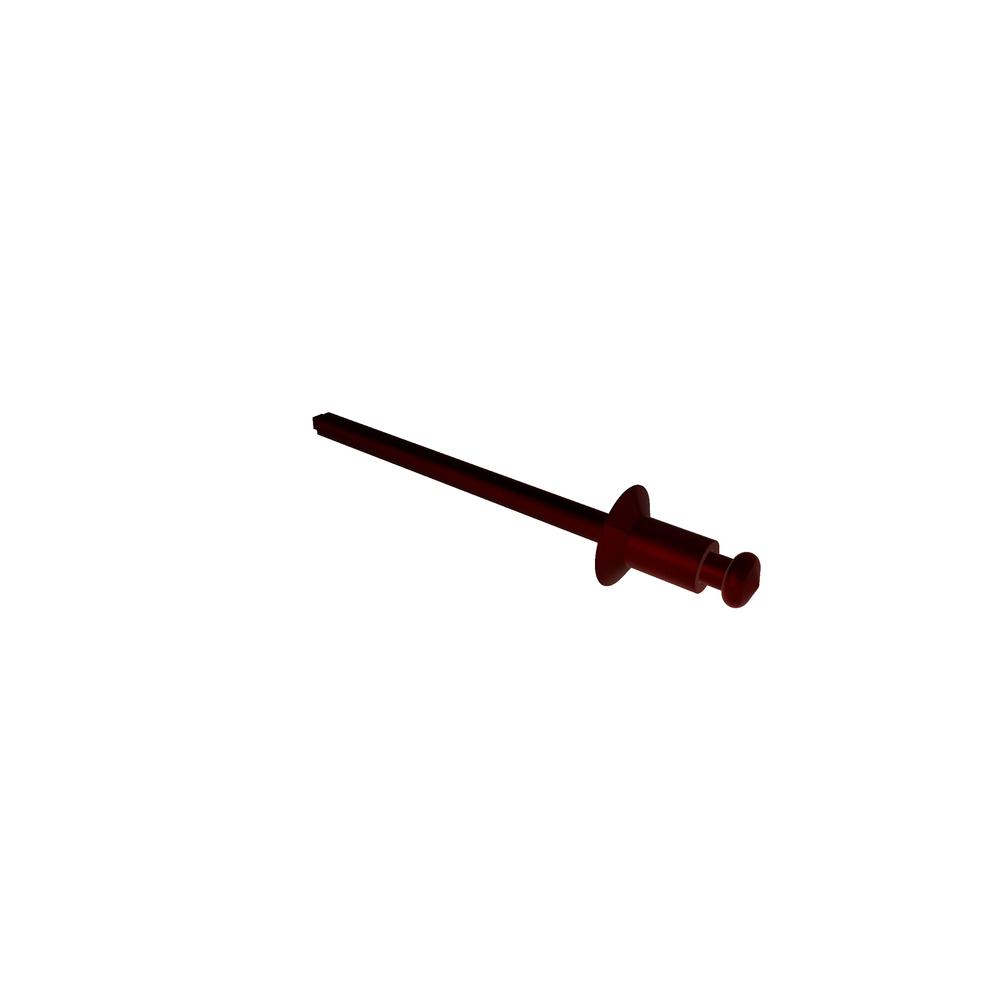

DOME HD RIVET 1/8 DIA X .121-.170 GRIP
Alternate Codes: N/A
MONEL
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Finish | Zinc |
| Units | Inch |
| Head Type | Domed |
| Body Diameter (Min.) | 0.123in |
| Grip Range | 0.121in to 0.170in |
| Hole Size | 0.129in to 0.133in |
| Drill Size | #30 |
| Flange | 6 |
| Flange Diameter (Min.) | 0.230in |
| Flange Diameter (Max.) | 0.262in |
| Flange Thickness (Min.) | 0.023in |
| Flange Thickness (Max.) | 0.043in |
| Blind Side Protrusion | 0.413in |
| Tensile Strength | 562 lbs |
| Single Shear Strength | 394 lbs |
| Mandrel Diameter | 0.076in |
| Mandrel Finish | Zinc |
| Mandrel Material | Steel |
| Rivet Body Material | Monel |
| Rivet Style | Open End |
| Brand | HANSON RIVET |
| Type | Blind Rivet |
| RoHS | Compliant |
| Body Diameter (Max.) | 0.128in |
