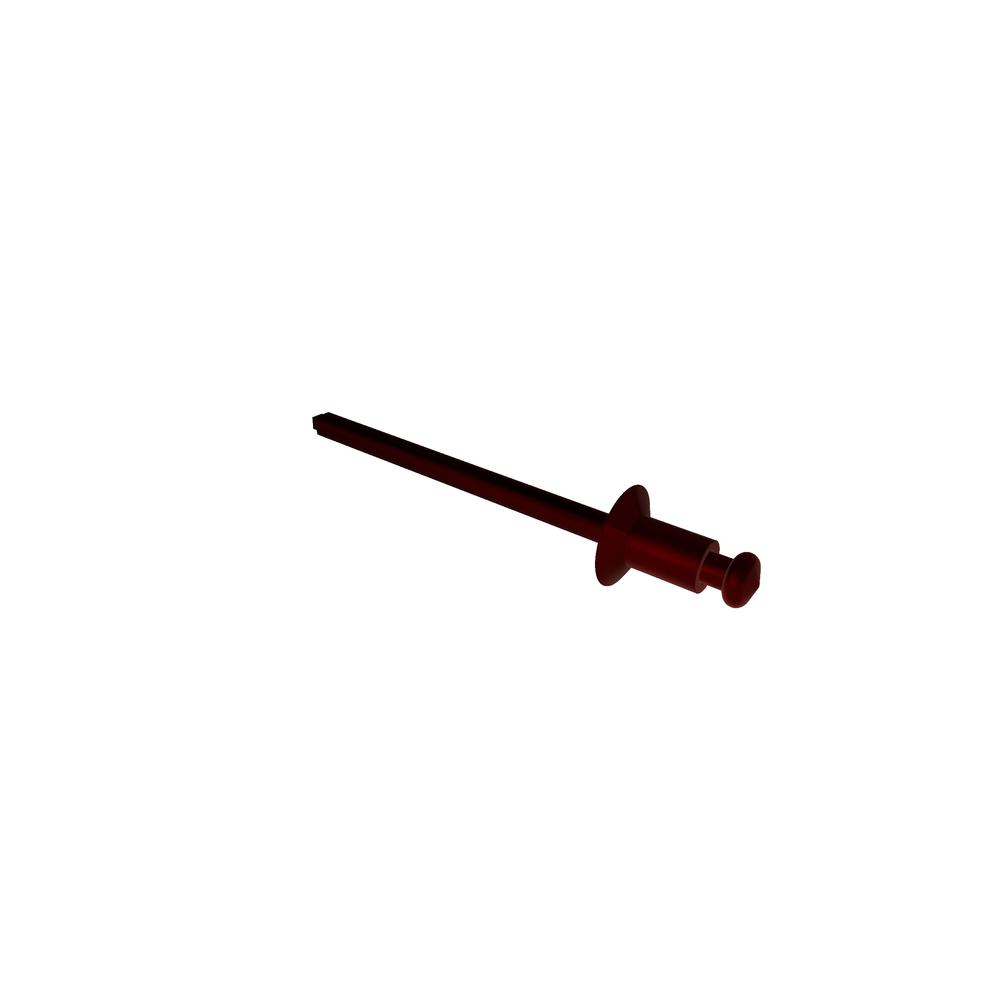

Image for reference purposes only. Actual product may vary.
SD42BS
POP RIVET 1/8 DIA X .063-.125 GRIP
Alternate Codes: 201-0004-00, 4-2SSD, 60222, 97519A015, GSMD42S, S/S42D, SB4-2, SBS42, SDS42, SS42, SSP-42
POP Rivet 1/8 Diameter X .063-.125 Grip Dome Head Steel Body/Steel Mandrel
Pricing per Unit
| 1-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs | Call For |
|---|---|---|---|---|---|
| $0.144 | $0.086 | $0.072 | $0.059 | $0.052 | Larger Quantities |
In Stock
Maximum stock already in cart
| Tensile Strength | 425 lbs |
| Type | Blind Rivet |
| Brand | HELICOIL/STANLEY |
| Rivet Style | Open End |
| Mandrel Material | Steel |
| Rivet Body Material | C1006-C1010 Steel |
| Mandrel Finish | Protective Coating |
| Mandrel Diameter | 0.076in |
| Single Shear Strength | 295 lbs |
| Blind Side Protrusion | 0.370in |
| Flange | 6 |
| Drill Size | #30 |
| Grip Range | 0.063in to 0.125in |
| Body Diameter (Min.) | 0.122in |
| Hole Size | 0.129in to 0.133in |
| Flange Diameter (Min.) | 0.238in |
| Flange Diameter (Max.) | 0.262in |
| Flange Thickness (Min.) | 0.032in |
| Flange Thickness (Max.) | 0.040in |
| Additional Industry Cross Reference | 97519A015 |
| RoHS | Compliant |
| Body Diameter (Max.) | 0.128in |
