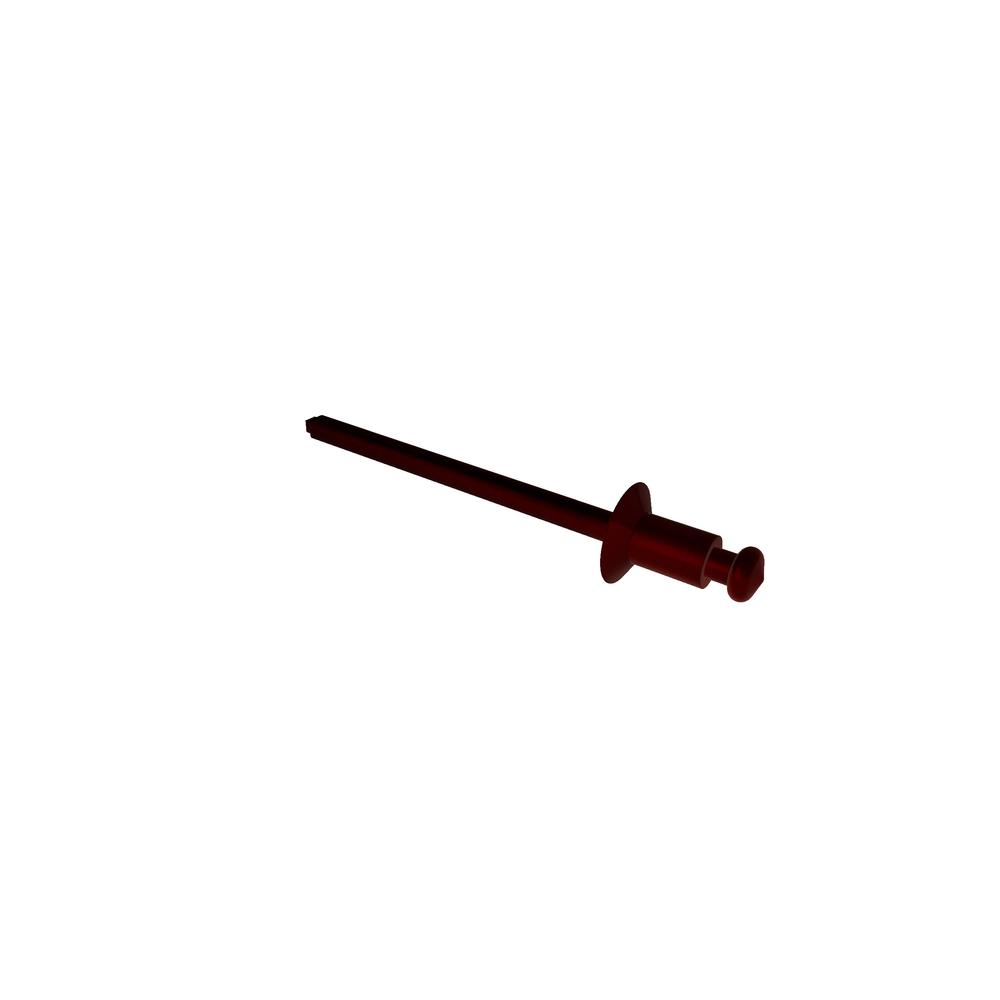

SD64BS
POP RIVET 3/16 DIA X .126-.250 GRIP
Alternate Codes: 97519A050, SS64
Pricing per Unit
| 1-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs | Call For |
|---|---|---|---|---|---|
| $0.226 | $0.136 | $0.113 | $0.093 | $0.082 | Larger Quantities |
In Stock
| Finish | Zinc |
| Units | Inch |
| Head Type | Domed |
| Body Diameter (Min.) | 0.183in |
| Grip Range | 0.126in to 0.250in |
| Hole Size | 0.192in to 0.196in |
| Drill Size | #10 |
| Flange | 13 |
| Flange Diameter (Min.) | 0.357in |
| Flange Diameter (Max.) | 0.393in |
| Flange Thickness (Min.) | 0.047in |
| Flange Thickness (Max.) | 0.055in |
| Blind Side Protrusion | 0.585in |
| Tensile Strength | 815 lbs |
| Single Shear Strength | 590 lbs |
| Mandrel Diameter | 0.114in |
| Mandrel Finish | Protective Coating |
| Mandrel Material | Steel |
| Rivet Body Material | C1006-C1010 Steel |
| Rivet Style | Open End |
| Brand | HELICOIL/STANLEY |
| Type | Blind Rivet |
| Additional Industry Cross Reference | 97519A050 |
| RoHS | Compliant |
| Body Diameter (Max.) | 0.191in |
