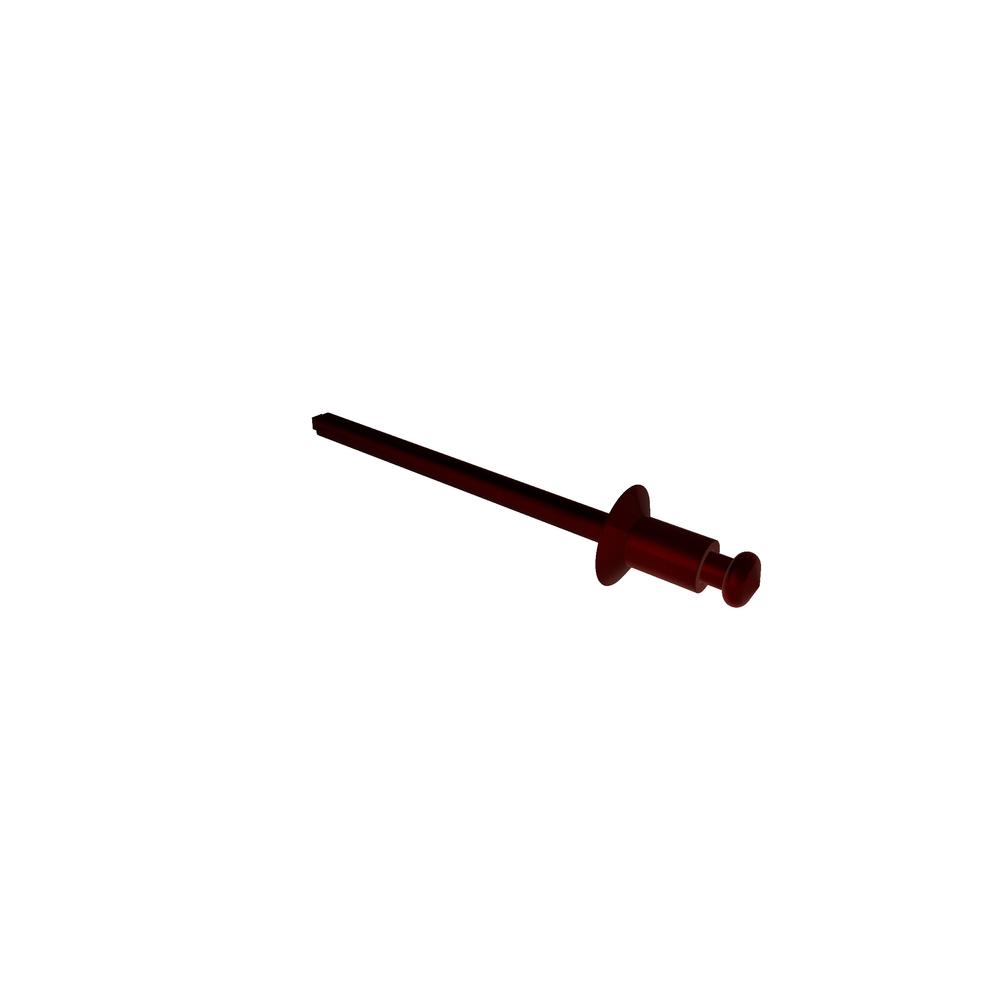

POP RIVET 3/16 DIA X .251-.375 GRIP
SD66BS
Item Id | SD66BS |
Description | POP RIVET 3/16 DIA X .251-.375 GRIP |
Alternate Codes | 97519A055, SS66 |
Extended Description | |
Packaging | EA |
Additional Industry Cross Reference | 97519A055 |
Blind Side Protrusion | 0.710in |
Body Diameter (Max.) | 0.191in |
Body Diameter (Min.) | 0.183in |
Brand | HELICOIL/STANLEY |
Drill Size | #10 |
Finish | Zinc |
Flange | 13 |
Flange Diameter (Max.) | 0.393in |
Flange Diameter (Min.) | 0.357in |
Flange Thickness (Max.) | 0.055in |
Flange Thickness (Min.) | 0.047in |
Grip Range | 0.251in to 0.375in |
Head Type | Domed |
Hole Size | 0.192in to 0.196in |
Mandrel Diameter | 0.114in |
Mandrel Finish | Protective Coating |
Mandrel Material | Steel |
Rivet Body Material | C1006-C1010 Steel |
Rivet Style | Open End |
RoHS | Compliant |
Single Shear Strength | 590 lbs |
Tensile Strength | 815 lbs |
Type | Blind Rivet |
Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
