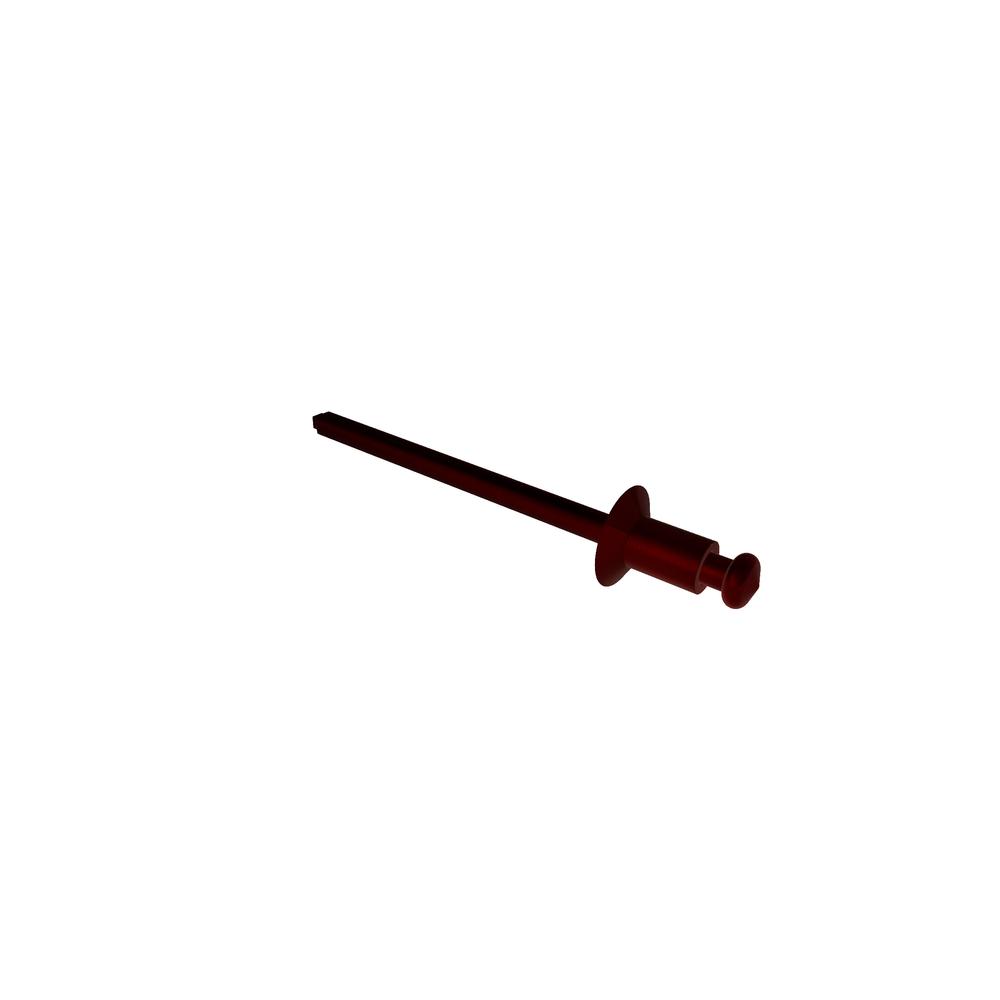

POP RIVET 1/4 DIA X .251-.375 GRIP
SD86BS
Item Id | SD86BS |
Description | POP RIVET 1/4 DIA X .251-.375 GRIP |
Alternate Codes | 97519A652, SS86 |
Extended Description | |
Packaging | EA |
Additional Industry Cross Reference | 97519A652 |
Blind Side Protrusion | 0.835in |
Body Diameter (Max.) | 0.255in |
Body Diameter (Min.) | 0.249in |
Brand | HELICOIL/STANLEY |
Drill Size | F |
Finish | Zinc |
Flange | 16 |
Flange Diameter (Max.) | 0.525in |
Flange Diameter (Min.) | 0.475in |
Flange Thickness (Max.) | 0.073in |
Flange Thickness (Min.) | 0.065in |
Grip Range | 0.251in to 0.375in |
Head Type | Domed |
Hole Size | 0.257in to 0.261in |
Mandrel Diameter | 0.151in |
Mandrel Finish | Protective Coating |
Mandrel Material | Steel |
Rivet Body Material | C1006-C1010 Steel |
Rivet Style | Open End |
RoHS | Compliant |
Single Shear Strength | 1245 lbs |
Tensile Strength | 1505 lbs |
Type | Blind Rivet |
Units | Inch |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
