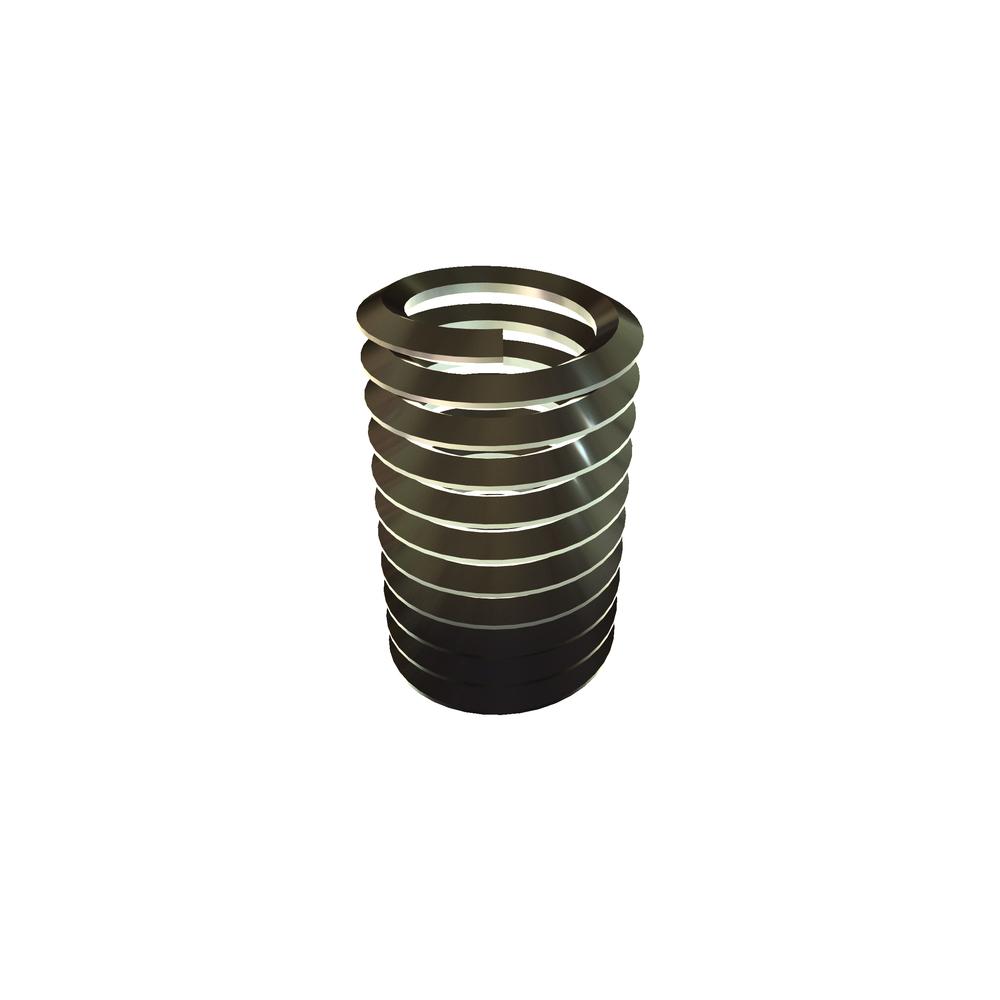

T3585-02C172
2-56 LKG TANGLESS HELI INS
Alternate Codes: 2TLC-02C-0172, 91630A427, NAS1130-02-L20, NAS1130-02L20
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.765 | $0.510 | $0.457 | $0.408 | $0.340 | Larger Quantities |
In Stock
| Thread Size | 2-56 |
| Material | 304 Stainless Steel |
| Finish | Plain |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.086in |
| Free Coil Diameter (Min.) | 0.110in |
| Free Coil Diameter (Max.) | 0.119in |
| Number of Coils | 7 3/8 |
| Packaging | Bulk |
| No. of Sides per Grip Coil | 4 |
| Number of Grip Coils | 1 |
| Number of Coils From End Insert | 3 11/16 |
| Insert Length | 0.172in |
| Brand | HELICOIL/STANLEY |
| Type | Screw-lock Inserts (internal-lock) |
| Additional Industry Cross Reference | 91630A427 |
| RoHS | Compliant |
