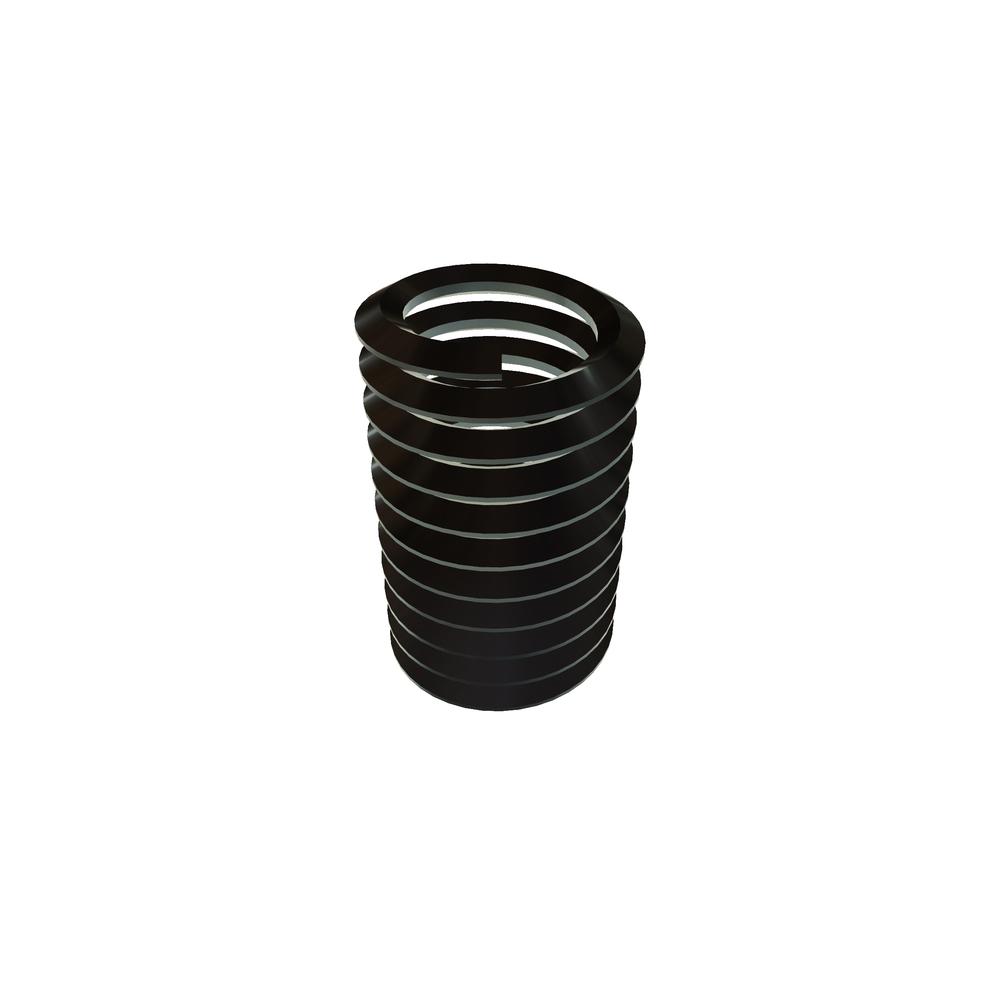

T3585-04CW112S
4-40 LKG TNGLS HELI INS DFL S/F
Alternate Codes: NAS1130-04-L10DS, NAS1130-04L10DS
STRIP FEED
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.780 | $0.520 | $0.466 | $0.416 | $0.347 | Larger Quantities |
In Stock
| Thread Size | 4-40 |
| Material | 304 Stainless Steel |
| Finish | Dry Film Lubricant |
| Units | Inch |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.112in |
| Free Coil Diameter (Min.) | 0.144in |
| Free Coil Diameter (Max.) | 0.159in |
| Number of Coils | 2 3/4 |
| Packaging | Strip Feed |
| No. of Sides per Grip Coil | 4 |
| Number of Grip Coils | 1 |
| Number of Coils From End Insert | 1 3/8 |
| Insert Length | 0.112in |
| Brand | HELICOIL/STANLEY |
| Type | Screw-lock Inserts (internal-lock) |
