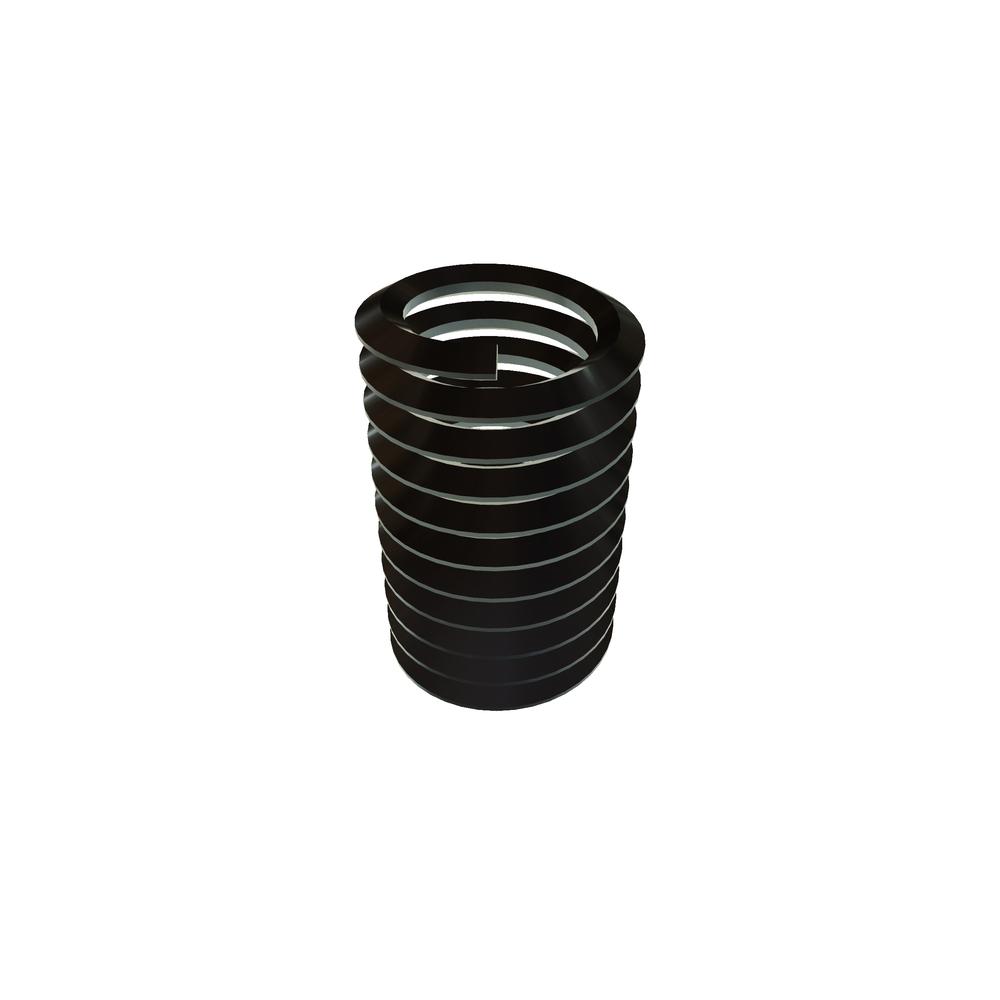

Image for reference purposes only. Actual product may vary.
T3585-04CW168S
4-40 Lkg Tangless H-C Ins DFL Strip Feed
Alternate Codes: NAS1130-04-L15DS, NAS1130-04L15DS, NAS1130-04L15DSF
STRIP FEED
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.926 | $0.617 | $0.553 | $0.494 | $0.412 | Larger Quantities |
Out of stock
| Units | Inch |
| Thread Size | 4-40 |
| Material | 304 Stainless Steel |
| Finish | Dry Film Lubricant |
| Type | Screw-lock Inserts (internal-lock) |
| Thread Type | Unified Coarse Thread (UNC) |
| Nominal Diameter | 0.112in |
| Free Coil Diameter (Min.) | 0.144in |
| Free Coil Diameter (Max.) | 0.159in |
| Number of Coils | 4 3/4 |
| Packaging | Strip Feed |
| No. of Sides per Grip Coil | 4 |
| Number of Grip Coils | 1 |
| Number of Coils From End Insert | 2 3/8 |
| Insert Length | 0.168in |
| Brand | HELICOIL/STANLEY |
