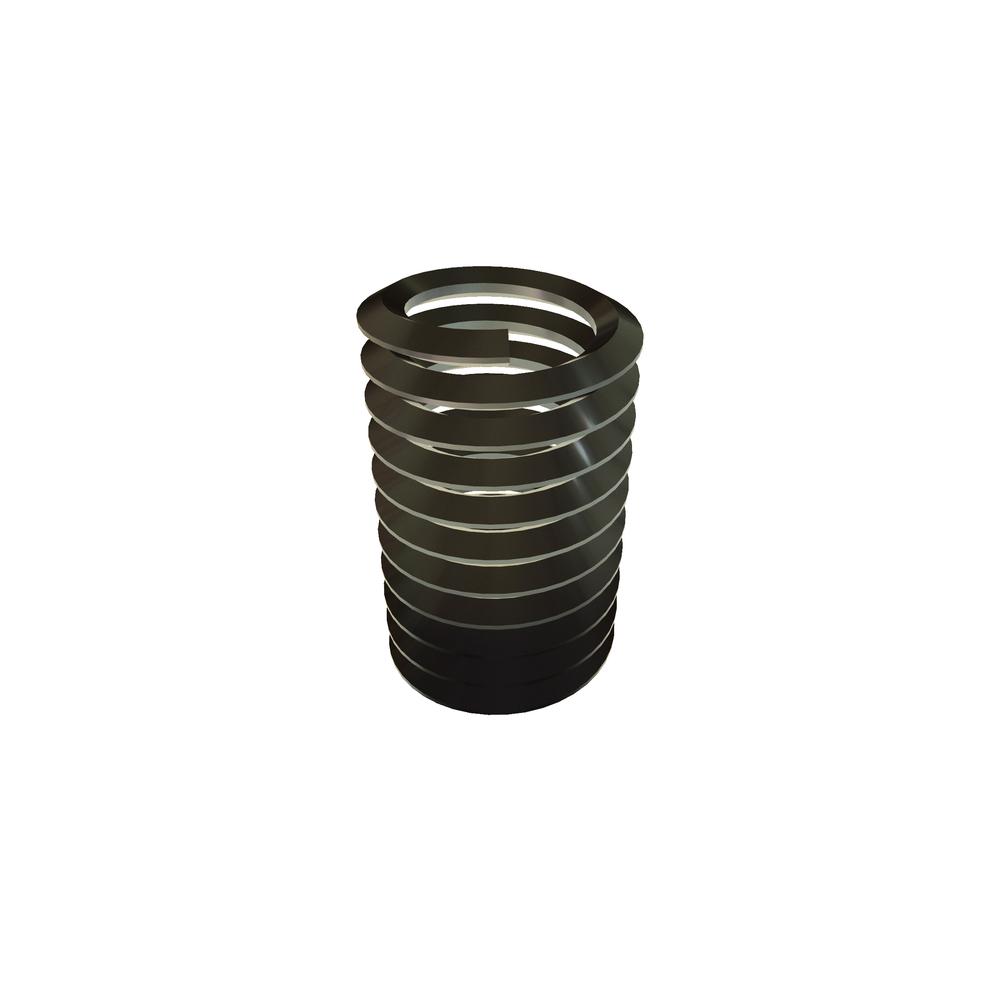

T3591-3CY190
10-32 LKG TGLS HELI-COIL INS CAD PLT
Alternate Codes: 2TLF-3C-0190Y, NAS1130-3L10P
Non-RoHS
Pricing per Unit
| 1-49 pcs | 50-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | Call For |
|---|---|---|---|---|---|
| $1.340 | $1.072 | $0.825 | $0.724 | $0.654 | Larger Quantities |
In Stock
| Thread Size | 10-32 |
| Material | 304 Stainless Steel |
| Finish | Cadmium |
| Units | Inch |
| Thread Type | Unified Fine Thread (UNF) |
| Nominal Diameter | 0.190in |
| Free Coil Diameter (Min.) | 0.236in |
| Free Coil Diameter (Max.) | 0.256in |
| Number of Coils | 4 1/8 |
| Packaging | Bulk |
| No. of Sides per Grip Coil | 5 |
| Number of Grip Coils | 1 |
| Number of Coils From End Insert | 2 1/16 |
| Insert Length | 0.190in |
| Brand | HELICOIL/STANLEY |
| Type | Screw-lock Inserts (internal-lock) |
