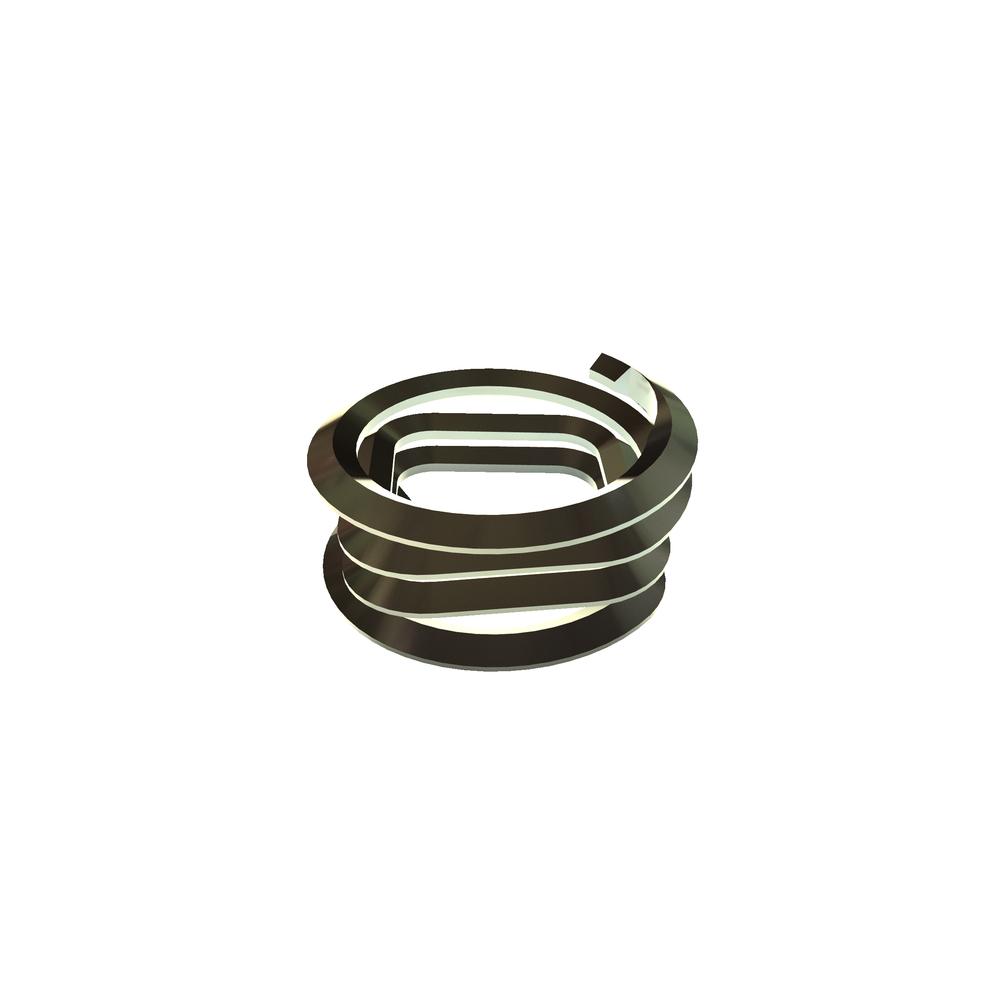

T4184-3C045S
M3-.5 TGLS LKG HELI-COIL INS STRIP FEED
Alternate Codes: NA0276M3L15S
RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $1.108 | $0.738 | $0.661 | $0.591 | $0.492 | Larger Quantities |
In Stock
| Thread Size | M3x0.5 |
| Material | 304 Stainless Steel |
| Finish | Plain |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 3 mm |
| Free Coil Diameter (Min.) | 3.90 mm |
| Free Coil Diameter (Max.) | 4.35 mm |
| Number of Coils | 6 3/8 |
| Packaging | Strip Feed |
| No. of Sides per Grip Coil | 4 |
| Number of Grip Coils | 2 |
| Number of Coils From End Insert | 3 3/16 |
| Insert Length | 4.50 mm |
| Brand | HELICOIL/STANLEY |
| Type | Screw-lock Inserts (internal-lock) |
| RoHS | Compliant |
