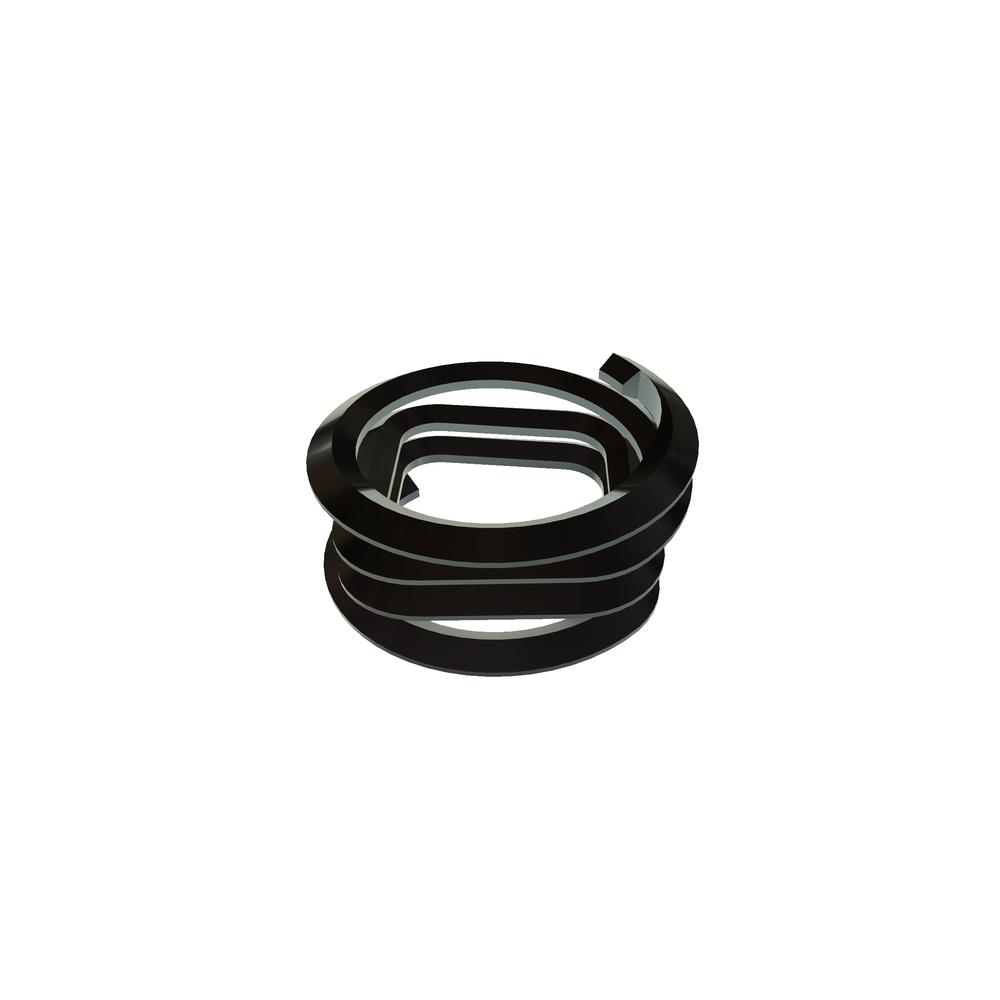

T4184-3CW060
M3 -.5 TGLS LKG HELI-COIL INS DFL
Alternate Codes: 2TLM3X.5C6W, NA0276M3L-20D, NA0276M3L20D
Pricing per Unit
| 1-49 pcs | 50-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | Call For |
|---|---|---|---|---|---|
| $1.434 | $1.147 | $0.883 | $0.775 | $0.700 | Larger Quantities |
In Stock
| Thread Size | M3x0.5 |
| Material | 304 Stainless Steel |
| Finish | Dry Film Lubricant |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 3 mm |
| Free Coil Diameter (Min.) | 3.90 mm |
| Free Coil Diameter (Max.) | 4.35 mm |
| Number of Coils | 8 7/8 |
| Packaging | Bulk |
| No. of Sides per Grip Coil | 4 |
| Number of Grip Coils | 2 |
| Number of Coils From End Insert | 4 7/16 |
| Insert Length | 6.00 mm |
| Brand | HELICOIL/STANLEY |
| Type | Screw-lock Inserts (internal-lock) |
