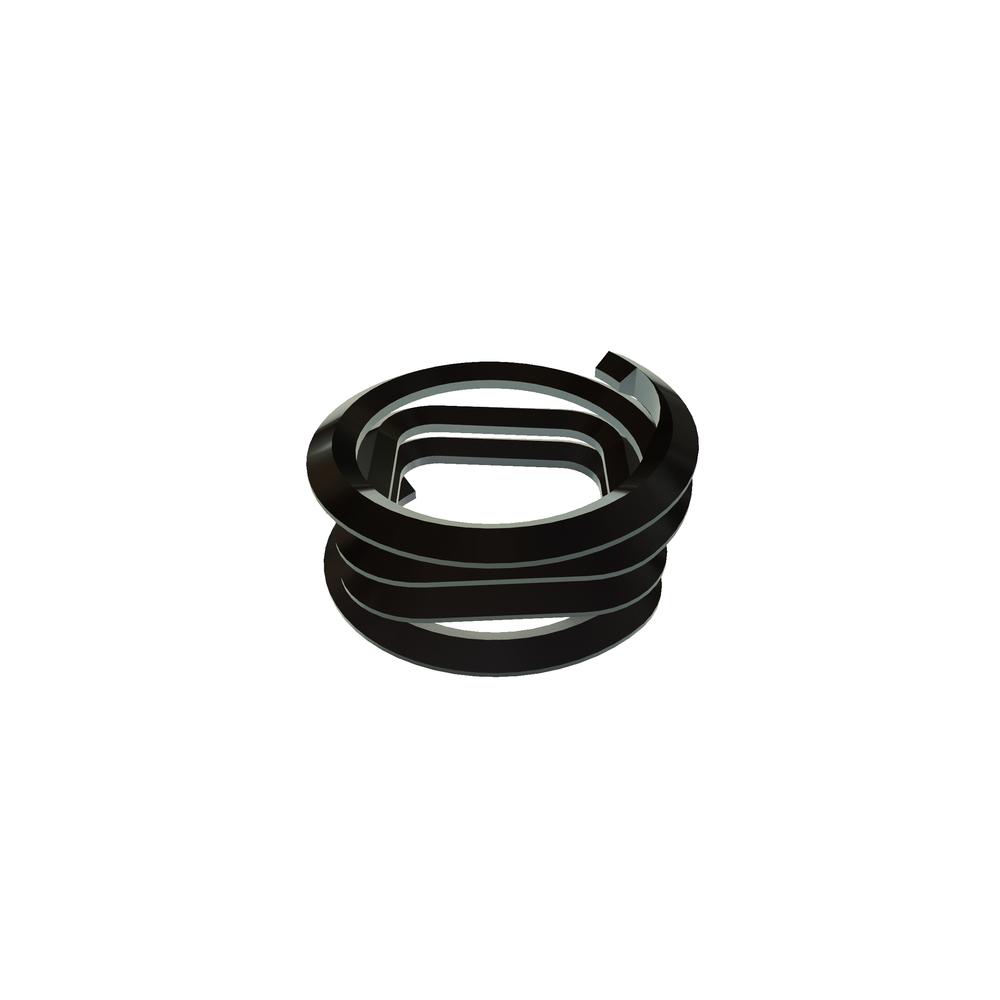

T4184-4CW060
M4-.7 TGLS LKG HELI-COIL INS DFL
Alternate Codes: 2TLM4X.7C6W, NA0276M4L-15D, NA0276M4L15D
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.980 | $0.653 | $0.585 | $0.523 | $0.436 | Larger Quantities |
In Stock
| Thread Size | M4x0.7 |
| Material | 304 Stainless Steel |
| Finish | Dry Film Lubricant |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 4 mm |
| Free Coil Diameter (Min.) | 5.20 mm |
| Free Coil Diameter (Max.) | 5.65 mm |
| Number of Coils | 6 1/8 |
| Packaging | Bulk |
| No. of Sides per Grip Coil | 4 |
| Number of Grip Coils | 1 |
| Number of Coils From End Insert | 3 1/16 |
| Insert Length | 6.00 mm |
| Brand | HELICOIL/STANLEY |
| Type | Screw-lock Inserts (internal-lock) |
